Removing - refitting outer handle

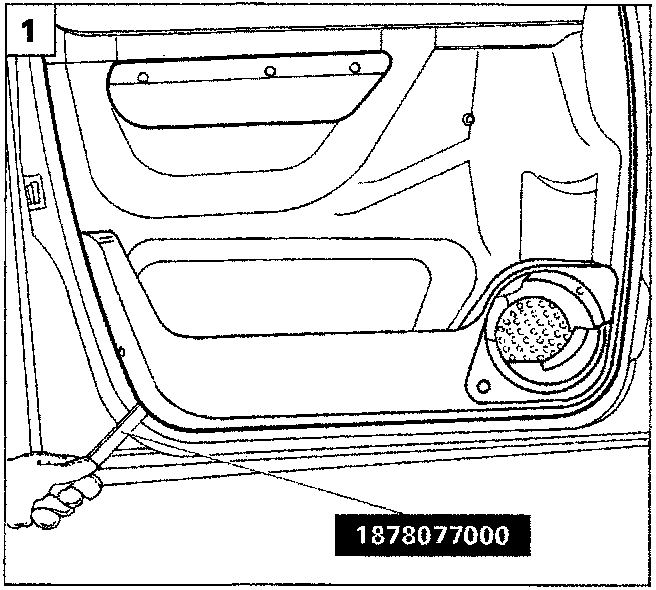

1. Using tool 1878077000 release the buttons fixing the panel to the door, then remove the panel from the vehicle.

NOTE To refit suitably reverse the operations carried out for the removal

REMOVING - REFITTING OUTER HANDLE

Remove the door panel as described previously.

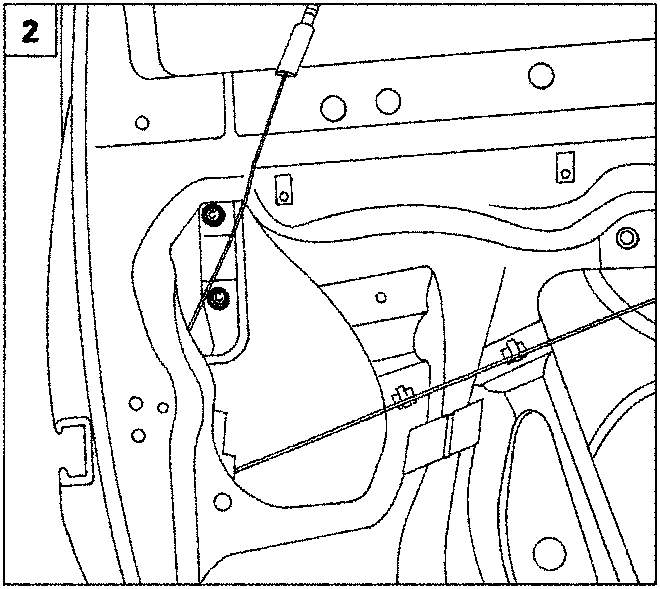

2. Remove the adhesive rubber cover on the frame and undo the bolts fixing the outer handle to the door;

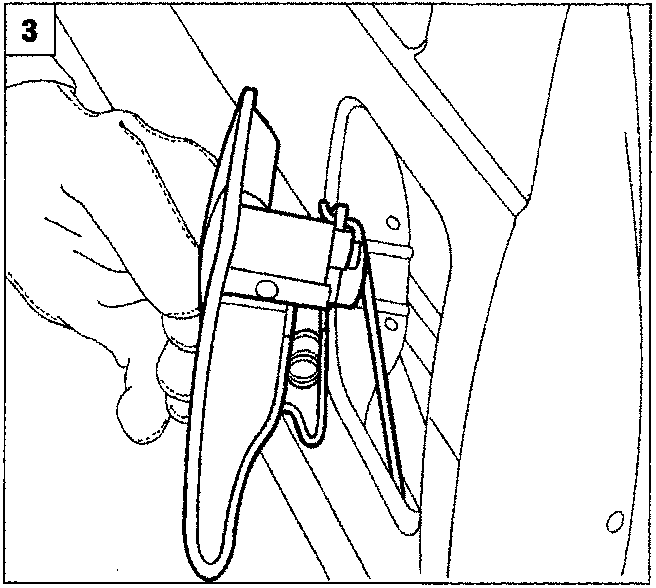

3. disconnect the rod from the door opening control lever, then remove the outer handle.

REMOVING - REFITTING DOOR LOCK

• Remove the door panel and the outer door handle.

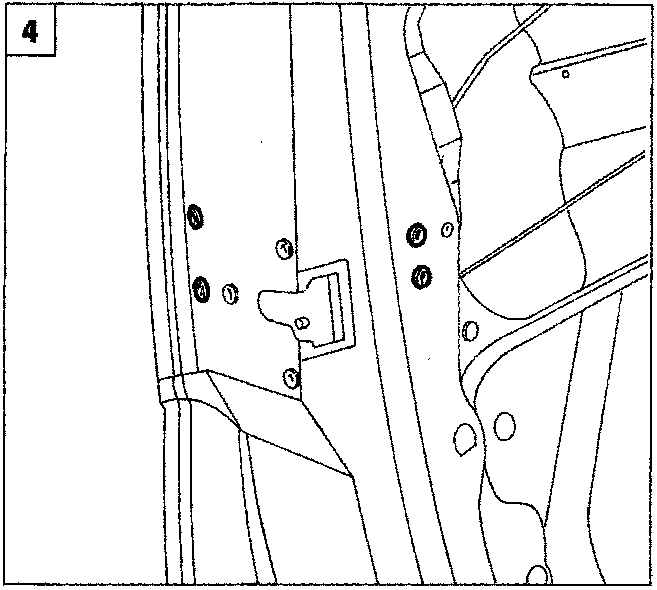

4. Undo the bolts fixing the two plastic shields inside the door frame.
