Refitting

Refitting

↑ ↓

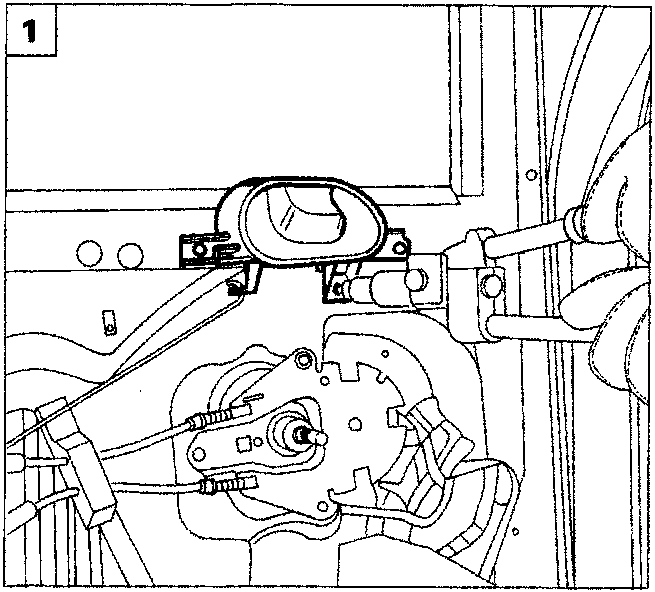

1. When refitting suitably reverse the operations carried out for the removal, taking into account that when fixing the door opening control lever it is necessary to replace the rivets positioning them with a special riveting machine.

WINDOW OPENING DEVICE

Removing

Remove the door panel as described previously.

NOTE Position the window opening handle in the special housing and place the window in the halfway travel position.

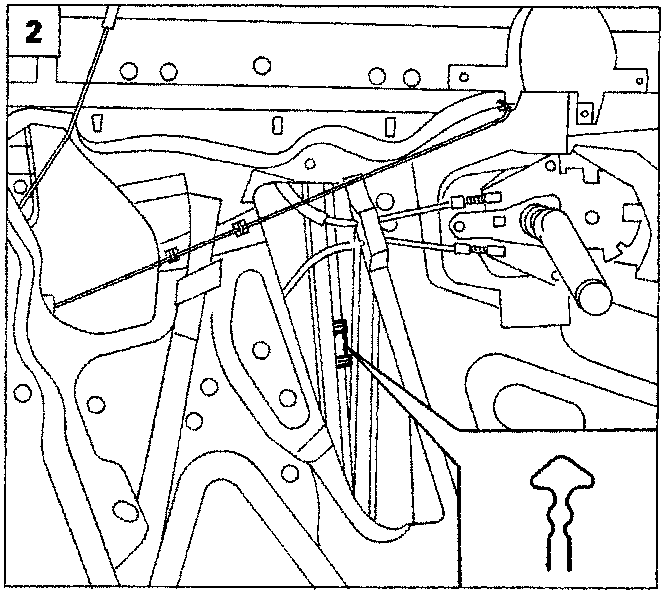

2. Release the clip fixing the window to the window opening device, then release the window from its housing;

NOTE Place the window in the end of travel position at the top.

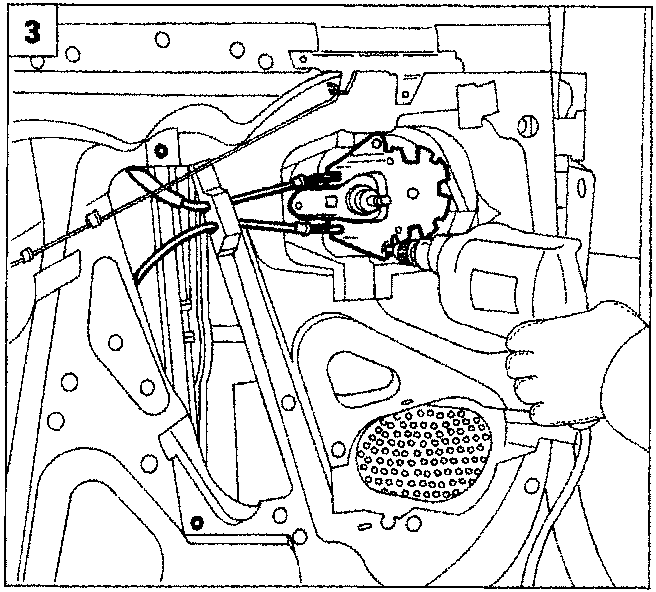

3. undo the bolts shown and remove the window opening device releasing it from the rivets fixing it to the door frame.

Refitting

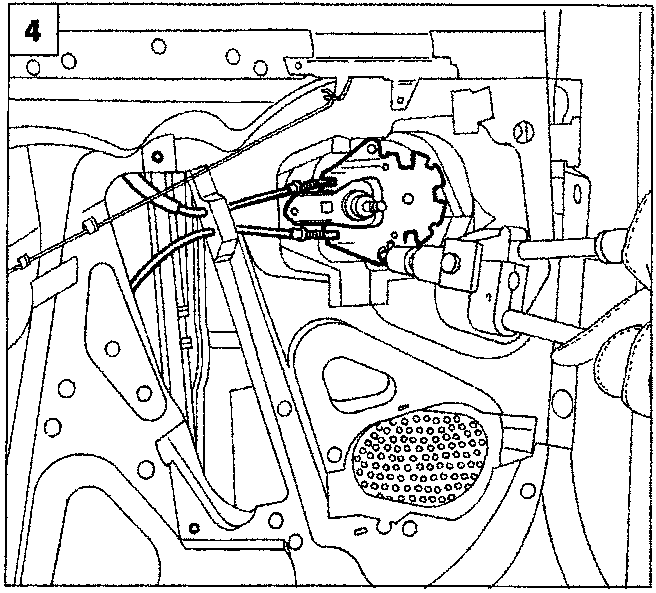

4. When refitting suitably reverse the operations carried out for the removal, fixing the window opening device to the door with new rivets using the appropriate riveting machine.
