Lock operating device

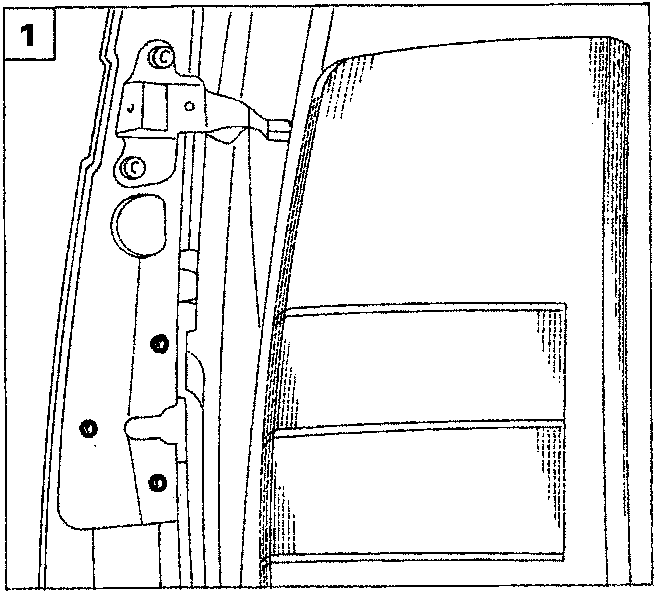

1. undo the bolts fixing the lock to the door, then remove it from the door.

LOCK OPERATING DEVICE

Removing

Remove the door panel as shown previously.

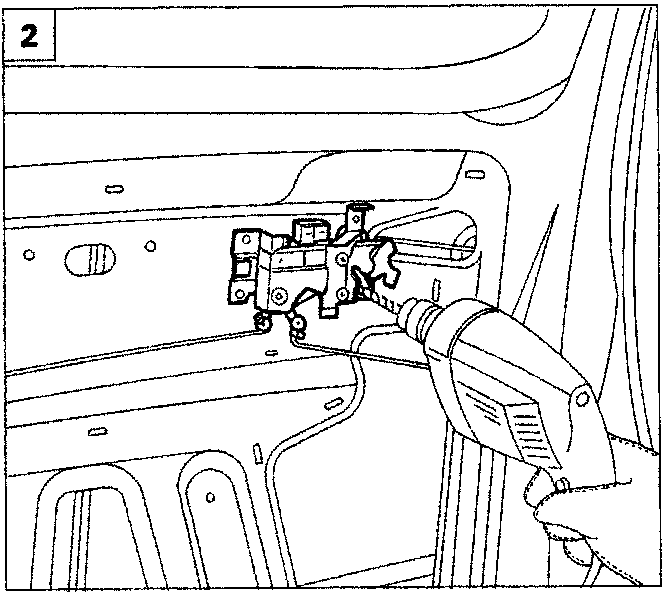

2. Remove the rivets to release the lock operating device from the door;

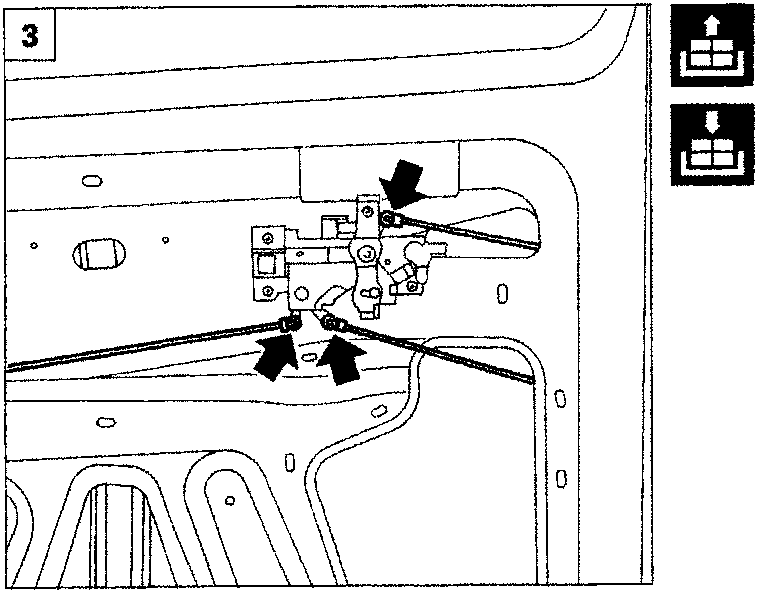

3. disconnect the rods on the lock device, then remove it from thedoor.

Refitting

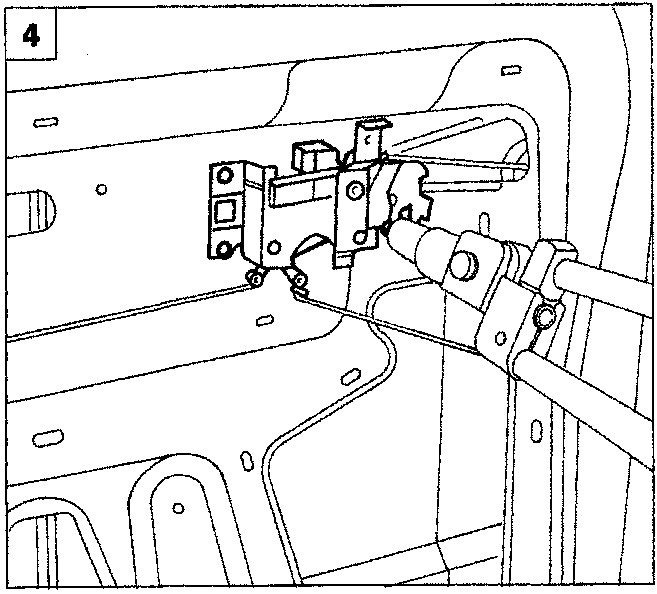

4. When refitting suitably reverse the operations carried out for the removal, fixing the lock operating device to the door with new rivets using the appropriate riveting machine.
