FRONT SEAT ARM REST
Removing

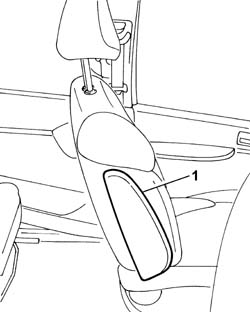

1. Place the armrest in the vertical position.

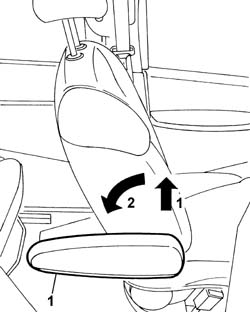

1. Exert pressure on the rotation pin and rotate the armrest towards the rear section of the seat until it is in the end of travel position and remove it.
Refitting
- Fit the armrest.
- Exert pressure on the rotation pin and rotate the armrest towards the front section of the seat until it is in the end of travel position.
- Check the operation of the armrest.
