Drive Belt: Service and Repair

Drive Belt Replacement

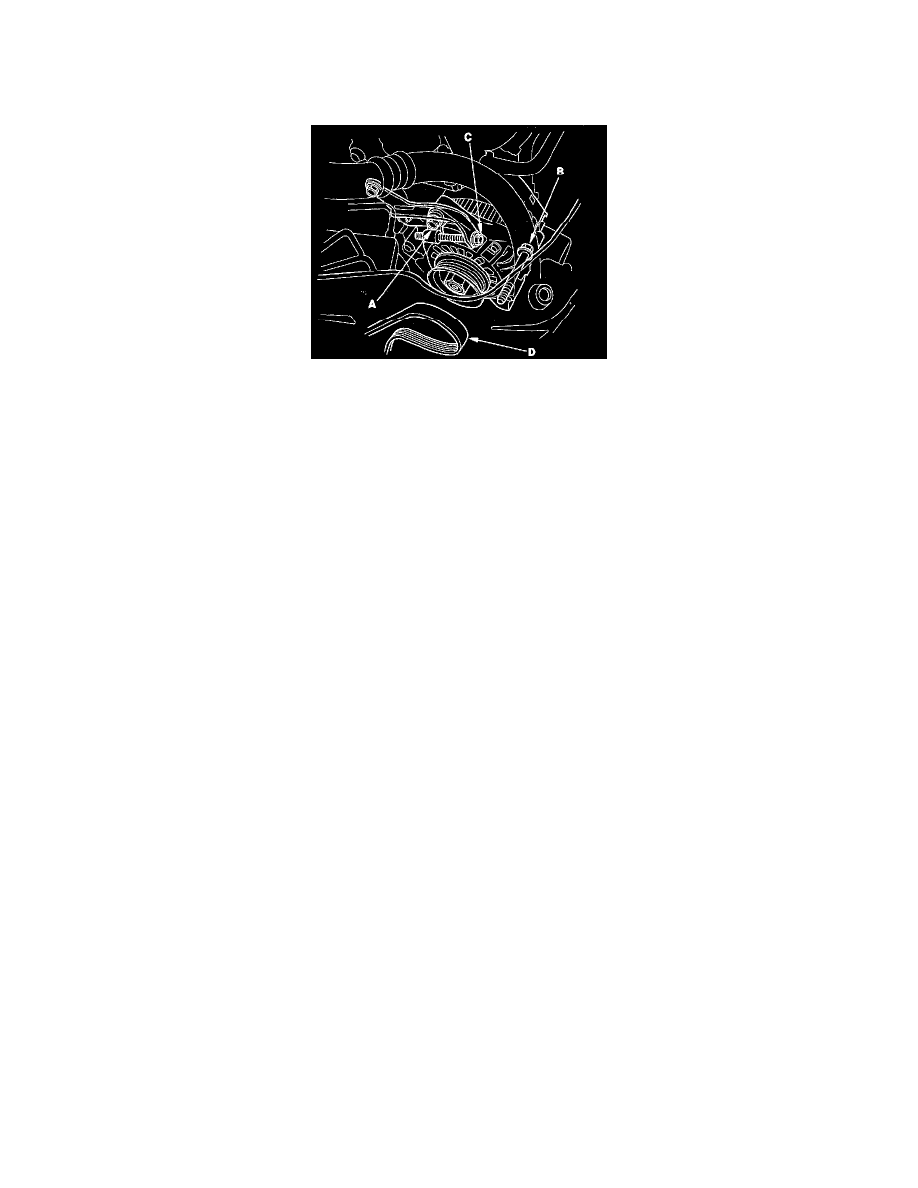

1. Loosen the lock bolt (A), the mounting bolt (B), and the adjusting bolt (C), then remove the drive belt (D).

2. Install the drive belt in the reverse order of removal.
3. Adjust the drive belt tension.
