S2000 L4-2.2L (2004)
Flywheel: Service and Repair
Clutch Replacement
Special Tools Required
^
Clutch alignment shaft 07LAF-PT00110
^
Remover handle 07936-3710100
^
Ring gear holder 07LAB-PV00100 or 07924-PD20003
^
Driver 07749-0010000
^
Attachment, 32 x 37 mm 07746-0010200
Pressure Plate and Clutch Disc Removal

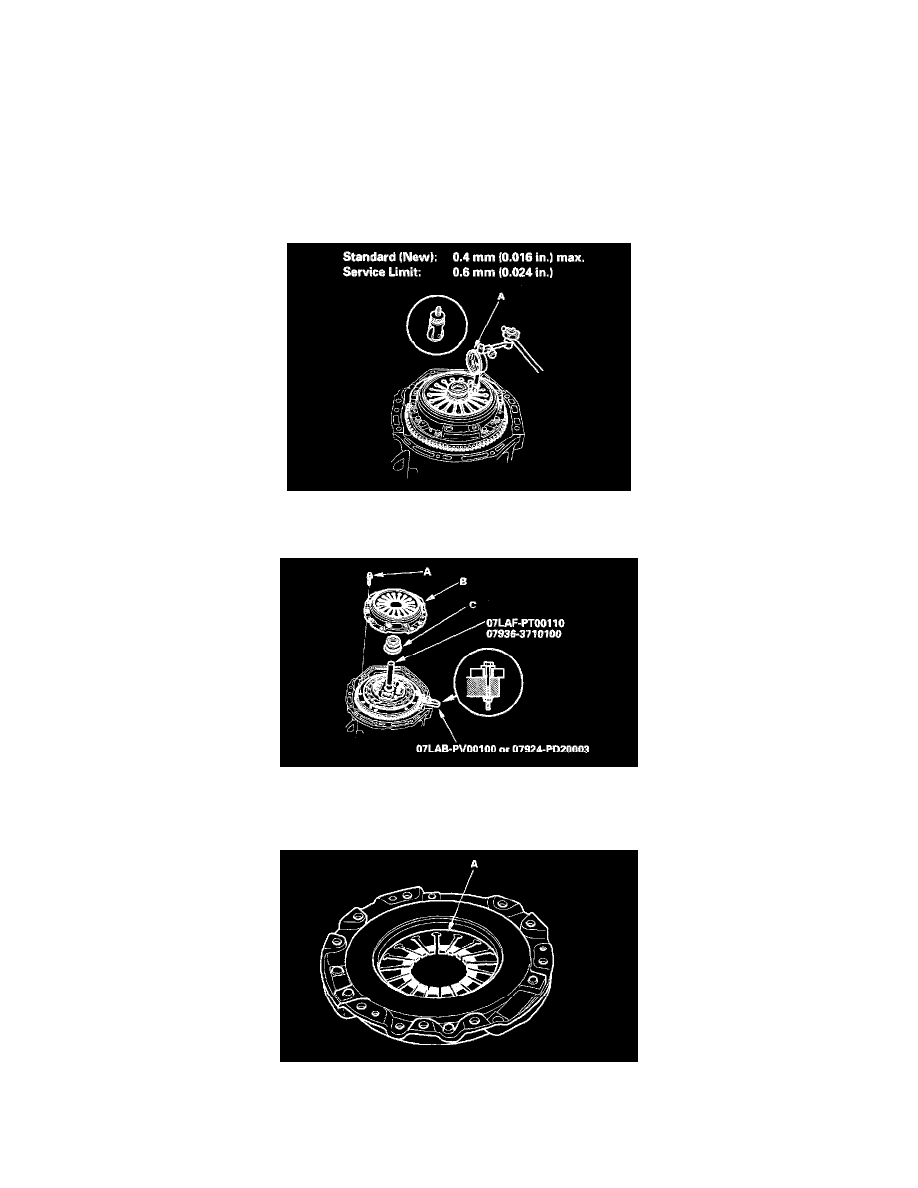

1. Check the height-variation of the diaphragm spring fingers using the dial indicator (A). If the variation is more than the service limit, replace the
pressure plate.
2. Install the special tools.
3. To prevent warping, unscrew the pressure plate mounting bolts (A) in a crisscross pattern in several steps, then remove the pressure plate (B).
4. Remove the release bearing (C) from the pressure plate.
5. Inspect the fingers of the diaphragm spring (A) for wear at the release bearing contact area.
6. Inspect the surface of the pressure plate for wear, cracks, and burning.
