Lighting and HornsDiagrams · page 1 of 2
background image

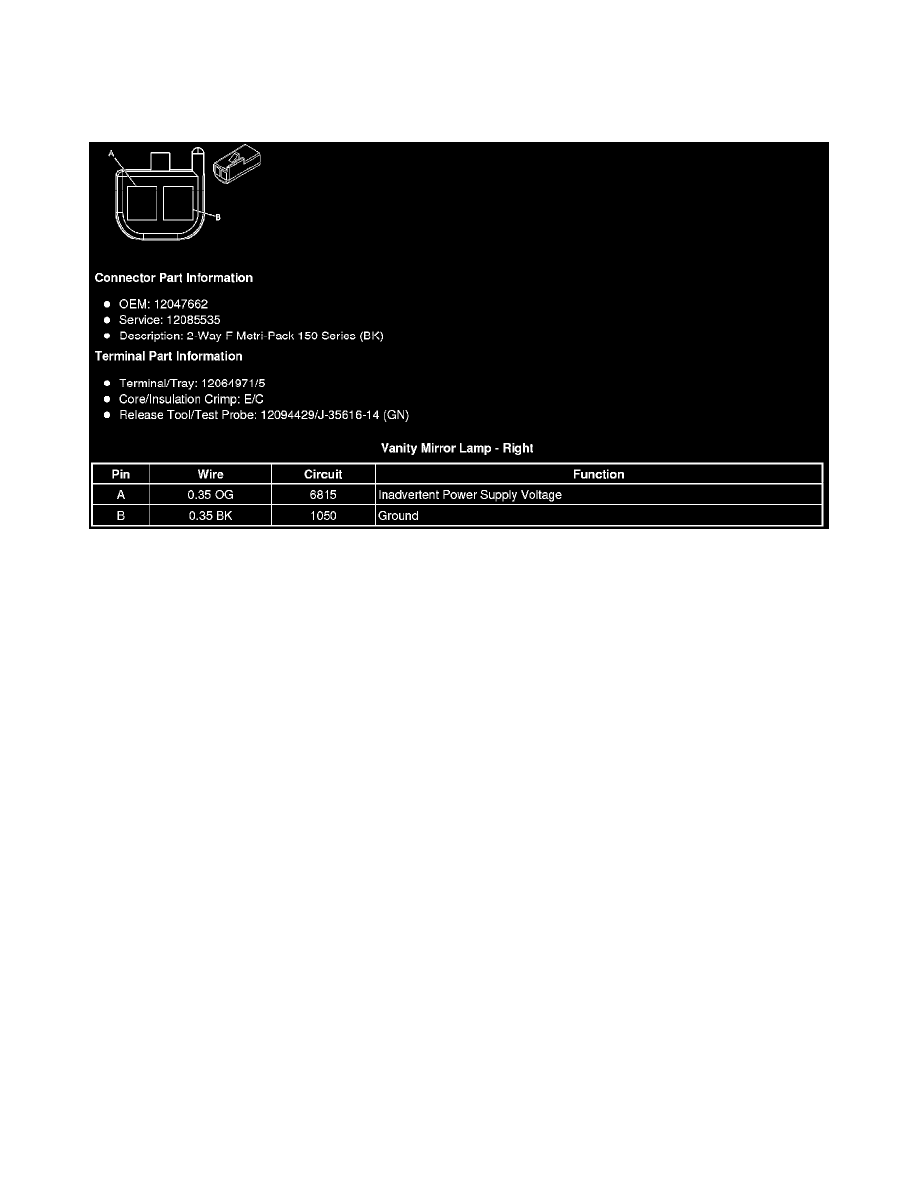

Vanity Lamp: Diagrams

Component Connector End Views

Vanity Mirror Lamp - Right

Pinch or Ctrl + scroll to zoom. Double-tap to reset.
