Timing Belt: Specifications (page 3 of 10)
- Make
- Hyundai
- Model
- Santa Fe
- Engine
- V6-3.5L
- Year
- 2004
- Section
- Timing Belt
MaintenanceSpecifications · page 3 of 10

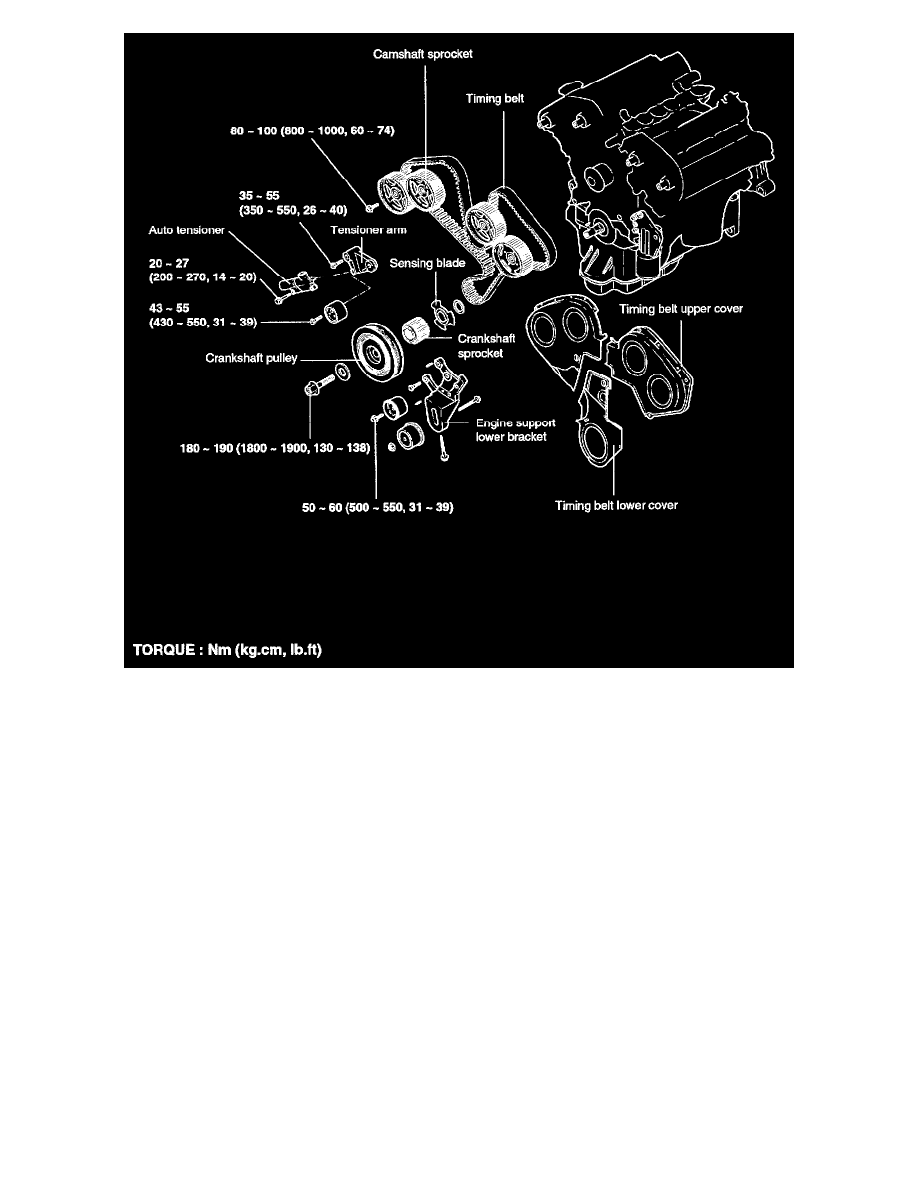

Timing Belt: Specifications (page 3 of 10) – diagram from the Maintenance chapter of the Hyundai Santa Fe V6-3.5L (2004) factory manual.
Pinch or Ctrl + scroll to zoom. Double-tap to reset.
