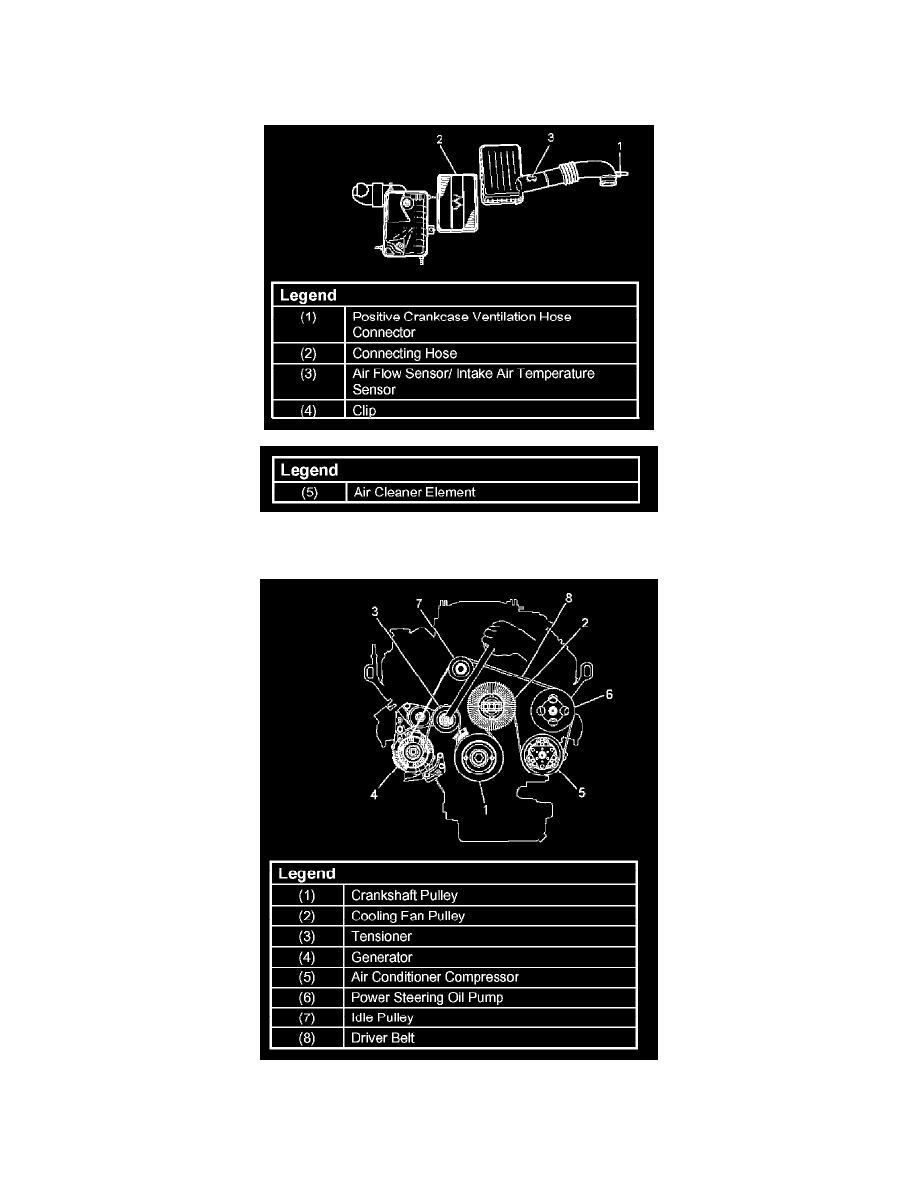

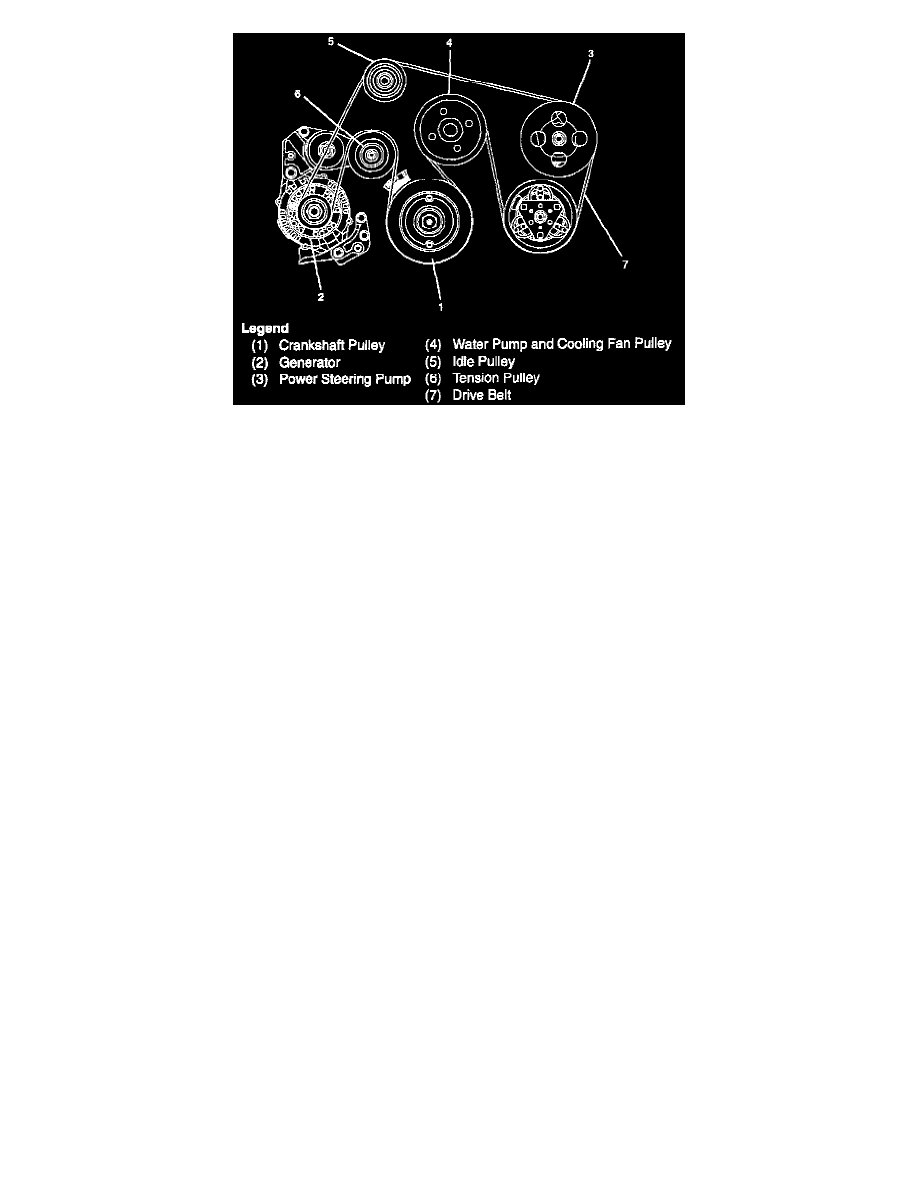

Drive Belt: Diagrams (page 2 of 3)
- Make
- Isuzu
- Model
- Axiom 4WD
- Engine
- V6-3.5L
- Year
- 2004
- Section
- Drive Belt
MaintenanceDiagrams · page 2 of 3
Drive Belt: Service and Repair
Serpentine Belt
Removal
1. Disconnect battery ground cable.
2. Remove air cleaner assembly.
3. Remove radiator upper fan shroud from radiator.
4. Move serpentine belt tensioner to loose side using wrench then remove serpentine belt.
5. Remove cooling fan assembly four fixing nuts, then the cooling fan assembly.
Installation
