Axiom 4WD V6-3.5L (2004)
1. Install crankshaft pulley using J-8614-01 crankshaft holder, hold the crankshaft pulley and tighten center bolt to the specified torque.
Torque: 167 Nm (123 ft. lbs.)

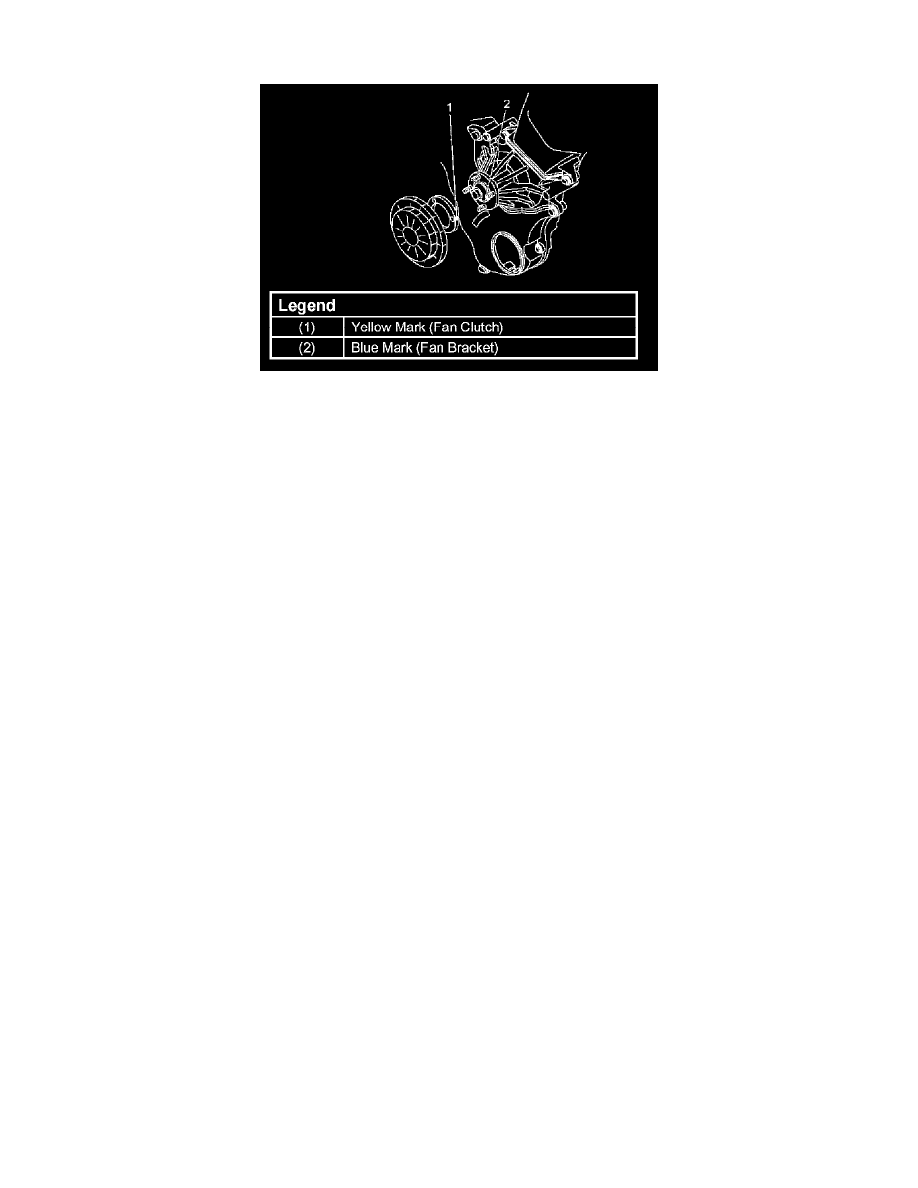

2. Install cooling fan assembly. Align the blue fan bracket mark with the yellow fan clutch mark. Assemble the 2 parts. Tighten bolts/nuts to the
specified torque.
Torque: 22 Nm (16.2 ft. lbs.) for fan pulley and fan bracket.
Torque: 10 Nm (7.4 ft. lbs.) for fan and clutch assembly.
3. Move serpentine belt tensioner to loose side using wrench, then install serpentine belt to normal position.
4. Install radiator upper fan shroud.
5. Install air cleaner assembly.
