Page 1

background image

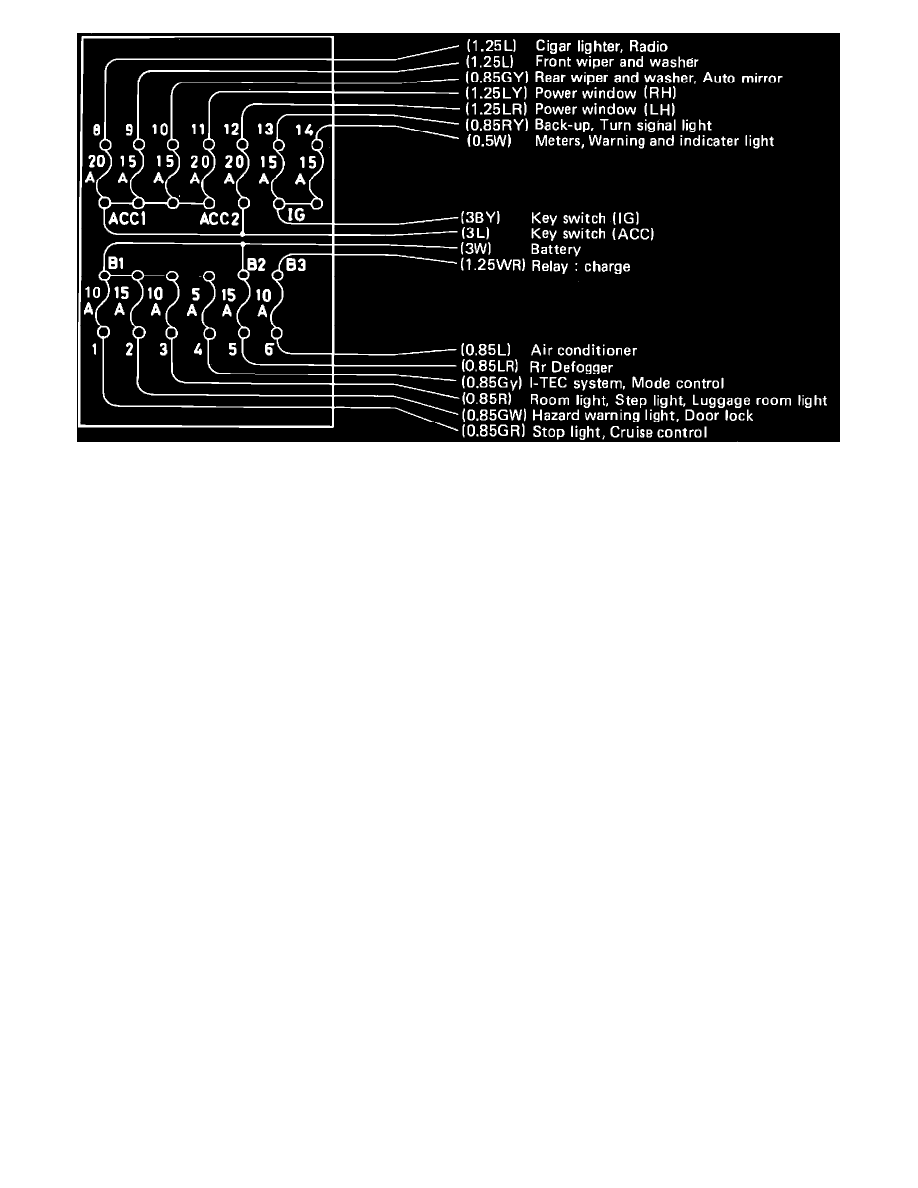

Fig. 9 Fuse Panel (Main). Less Turbocharger

Power and Ground Distribution
Fuse
Component Information
Locations
Main
