Sephia LS L4-1.8L (2001)
10. Check that "I" mark on intake camshaft pulley "E" mark on exhaust camshaft pulley are aligned with marks on cylinder head cover.
11. If they are not aligned, remove timing belt and start process from tensioner installation.

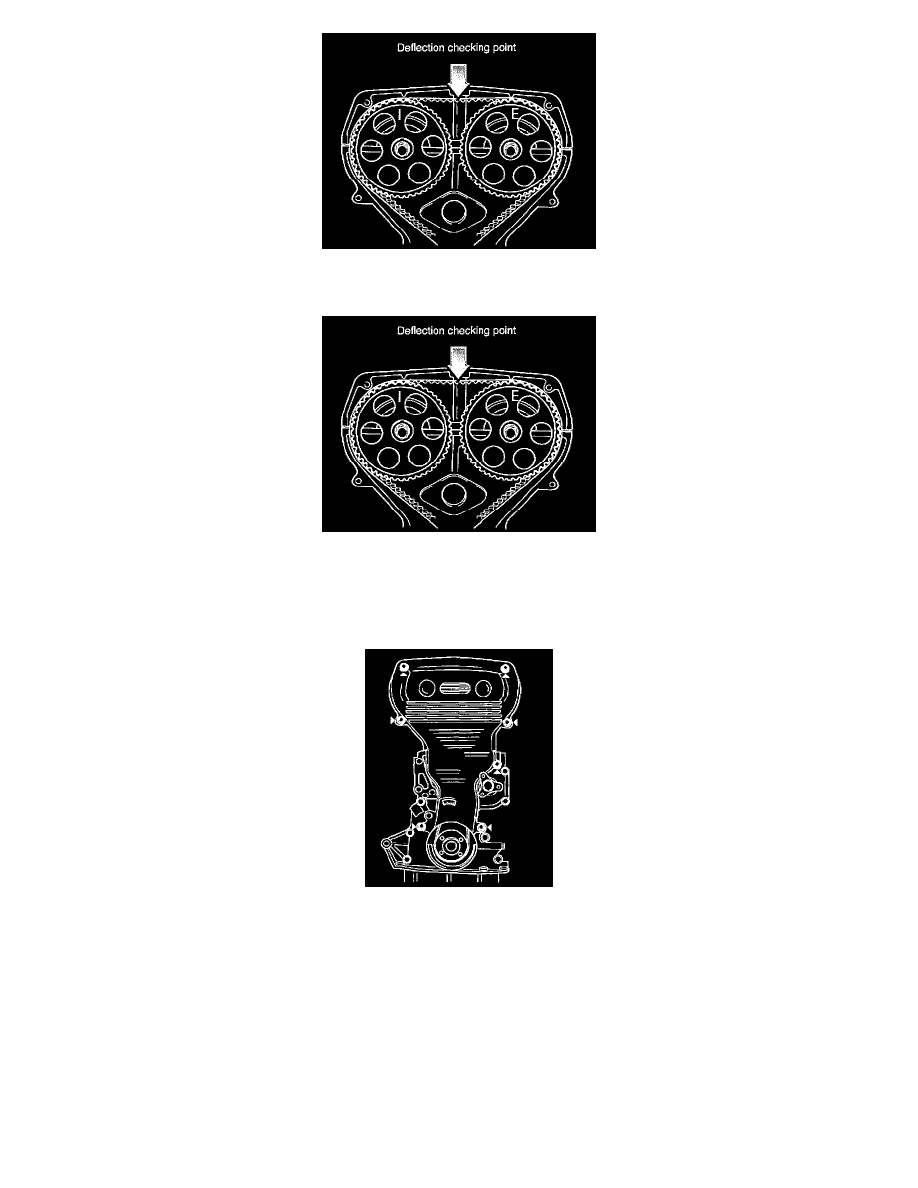

12. Measure timing belt deflection by applying moderate pressure midway between camshaft pulleys. If deflection is not correct, repeat from tensioner
installation.
Deflection pressure: 22 lbs. (98 N. 10 kg)
Deflection: 0.36 - 0.45 (9.0 - 11.0 mm)
13. Install lower and upper timing belt covers in that order.
Tightening torque: 70 - 96 in. lbs. (7.9 - 10.7 Nm, 0.8 - 1.1 kg-m)
