Flex Plate: Specifications

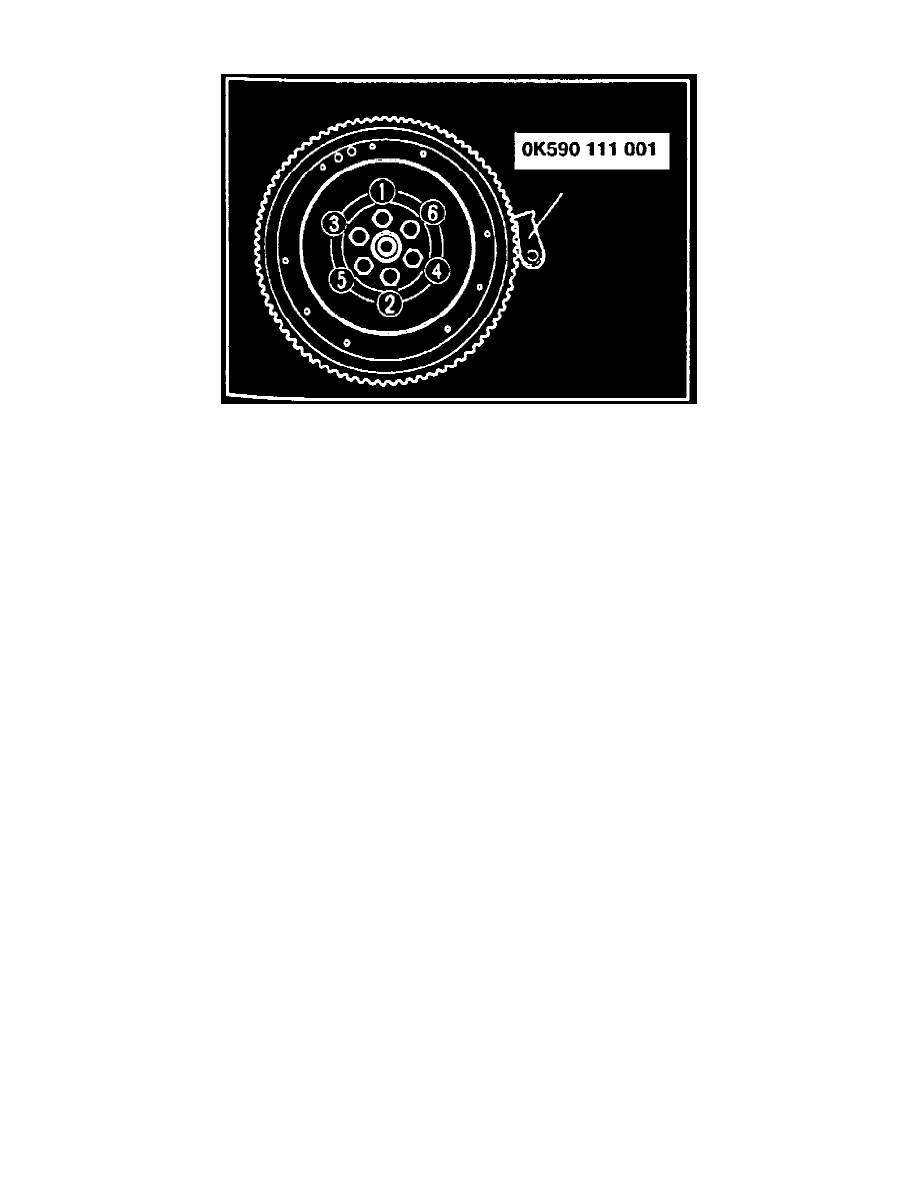

Fig. 23  Flywheel Tightening Sequence

FLYWHEEL OR FLEXPLATE MOUNT BOLTS

Torque ....................................................................................................................................................  71 - 75.9 ft. lbs. (97 - 103 Nm, 9.8 - 10.5 kg-m)

Tighten bolts in two or three steps to the specified torque.
