MASTER CYLINDER (pump) - R.R. and Bleed air

Operation 1820B20 · CLUTCH RELEASE HYDRAULIC OPERATION

2.0 TB, 2.4 20V, 2.4 JTD 10V, 2.4 JTD 20V

Removing

- Disconnect the negative battery terminal.

2.4 JTD 10V, 2.4 JTD 20V

See in Op. 1016A10 SOUND-PROOFING COVER - R.R.

2.0 TB, 2.4 20V, 2.4 JTD 10V, 2.4 JTD 20V

See in Op. 7040D50 ENGINE COMPARTMENT UPPER SOUND INSULATION SHIELD - R.R.

See in Op. 3330C40 brake fluid reservoir plug - r + r

See in Op. 3330C30 brake fluid reservoir - r + r and wash inside

See in Op. 7055B54 PROTECTION/GUARD under engine - R.R.

1. Fully depress the clutch pedal, then release the two clips retaining the master cylinder to the pedal.

2. Release the master cylinder push rod (2a) from the fastening device (2b).

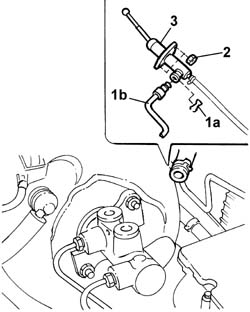

1. Remove the fastening spring (1a) and disconnect the rigid pipe (1b)

2. Undo the nuts fixing the master cylinder to the bodyshell.

3. Extract the master cylinder complete with flexible pipe from the reservoir to the master cylinder.

Refitting

- Fit the master cylinder, complete with flexible pipe from the reservoir to the master cylinder, and secure it by tightening the nuts to the recommended torque.

- Fit the rigid pipe in the special housing and secure it repositioning the spring in the special housing.

- Engage the master cylinder push rod clip in the clutch pedal.

- When the clutch pedal is fully depressed it should connected to the master cylinder push rod.

See in Op. 7055B54 PROTECTION/GUARD under engine - R.R.

See in Op. 3330C10 MASTER CYLINDER (PUMP) - R.R. - Bleed air from brakes separately

See in Op. 0010T67 HYDRAULIC CLUTCH SYSTEM - Bleed air

See in Op. 3330C40 brake fluid reservoir plug - r + r

See in Op. 7040D50 ENGINE COMPARTMENT UPPER SOUND INSULATION SHIELD - R.R.

2.4 JTD 10V, 2.4 JTD 20V

See in Op. 1016A10 SOUND-PROOFING COVER - R.R.

2.0 TB, 2.4 20V, 2.4 JTD 10V, 2.4 JTD 20V

- Connect the negative battery terminal.
