SUPPLY PIPE FROM MASTER CYLINDER (PUMP) - R.R.

Operation 1820B46 · CLUTCH RELEASE HYDRAULIC OPERATION

2.0 TB, 2.4 20V, 2.4 JTD 10V, 2.4 JTD 20V

Removing

- Position the vehicle on a lift.

- Disconnect the negative battery terminal.

See in Op. 7040D50 ENGINE COMPARTMENT UPPER SOUND INSULATION SHIELD - R.R.

2.4 JTD 10V

See in Op. 1016A10 SOUND-PROOFING COVER - R.R.

See in Op. 1048A50 air inlet pipe to turbocharger - r + r

2.4 20V

See in Op. 1048A28 vacuum air circuit resonator pipe - r+r

2.0 TB

See in Op. 1048B44 RIGID air supply PIPE from heat exchanger to intake manifold - R.R.

See in Op. 1016A40 Ignition COIL COVER on cylinder head - R.R.

See in Op. 1048A50 air inlet pipe to turbocharger - r + r

See in Op. 1048A21 AIR INLET HOSE FROM INTAKE TO FILTER - R.R.

See in Op. 1048A10 COMPLETE AIR FILTER -R.R.

See in Op. 1048A54 TURBOCHARGER air inlet HOSE from rigid pipe - R.R.

See in Op. 7055B54 PROTECTION/GUARD under engine - R.R.

2.4 JTD 20V

See in Op. 7055B54 PROTECTION/GUARD under engine - R.R.

See in Op. 1016A10 SOUND-PROOFING COVER - R.R.

See in Op. 1048B44 RIGID air supply PIPE from heat exchanger to intake manifold - R.R.

See in Op. 1048A50 air inlet pipe to turbocharger - r + r

2.0 TB, 2.4 20V, 2.4 JTD 10V, 2.4 JTD 20V

See in Op. 3330C40 brake fluid reservoir plug - r + r

See in Op. 3330C30 brake fluid reservoir - r + r and wash inside

See in Op. 5505A13 Additional junction unit in engine compartment - R.R.

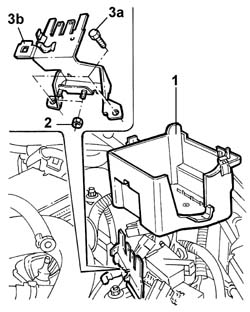

1. Remove the casing containing the engine compartment additional junction unit.

2. Undo the nut fixing the damper to the casing mounting bracket.

3. Undo the fixing bolts (3a) and remove the mounting bracket (3b).

See in Op. 1008A42 Power unit RIGID MOUNT - GEARBOX side - R and R

See in Op. 1008B30 Gearbox side mount FLEXIBLE BLOCK/S - Replace

1. Undo the fixing bolts (1a) and remove the bracket (1b) securing the flexible mounting.

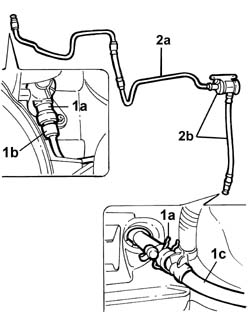

1. Lift up the fastening springs (1a) and release the pipe from the connectors on the clutch master cylinder (1b) and the actuator piston (1c).

2. Remove the pipe assembly and separate the supply pipe from the pump (2b) from the vibration damper (2c) at the bench.

Refitting

- Tighten the connector joining the supply pipe to the damper and fit the complete pipe in the special housing in the engine compartment.

- Connect the pipe to the master cylinder and to the actuator cylinder.

- Fit the mounting bracket for the flexible mounting and tighten the fixing bolts to torque.

See in Op. 1008B30 Gearbox side mount FLEXIBLE BLOCK/S - Replace

See in Op. 1008A42 Power unit RIGID MOUNT - GEARBOX side - R and R

- Fit the mounting bracket for the additional junction unit in the engine compartment.

- Tighten the nuts fixing the damper to the additional junction unit mounting bracket to torque.

- Fit the casing containing the engine compartment additional junction unit

See in Op. 5505A13 Additional junction unit in engine compartment - R.R.

See in Op. 3330C30 brake fluid reservoir - r + r and wash inside

See in Op. 3330C40 brake fluid reservoir plug - r + r

2.4 JTD 10V

See in Op. 1048A50 air inlet pipe to turbocharger - r + r

See in Op. 1016A10 SOUND-PROOFING COVER - R.R.

2.4 20V

See in Op. 1048A28 vacuum air circuit resonator pipe - r+r

2.0 TB

See in Op. 7055B54 PROTECTION/GUARD under engine - R.R.

See in Op. 1048A54 TURBOCHARGER air inlet HOSE from rigid pipe - R.R.

See in Op. 1048A10 COMPLETE AIR FILTER -R.R.

See in Op. 1048A21 AIR INLET HOSE FROM INTAKE TO FILTER - R.R.

See in Op. 1048A50 air inlet pipe to turbocharger - r + r

See in Op. 1016A40 Ignition COIL COVER on cylinder head - R.R.

See in Op. 1048B44 RIGID air supply PIPE from heat exchanger to intake manifold - R.R.

2.4 JTD 20V

See in Op. 1048A50 air inlet pipe to turbocharger - r + r

See in Op. 1048B44 RIGID air supply PIPE from heat exchanger to intake manifold - R.R.

See in Op. 1016A10 SOUND-PROOFING COVER - R.R.

See in Op. 7055B54 PROTECTION/GUARD under engine - R.R.

2.0 TB, 2.4 20V, 2.4 JTD 10V, 2.4 JTD 20V

See in Op. 0010T67 HYDRAULIC CLUTCH SYSTEM - Bleed air

See in Op. 7040D50 ENGINE COMPARTMENT UPPER SOUND INSULATION SHIELD - R.R.

- Remove the vehicle from the lift.

- Connect the negative battery terminal.
