Interior lamps

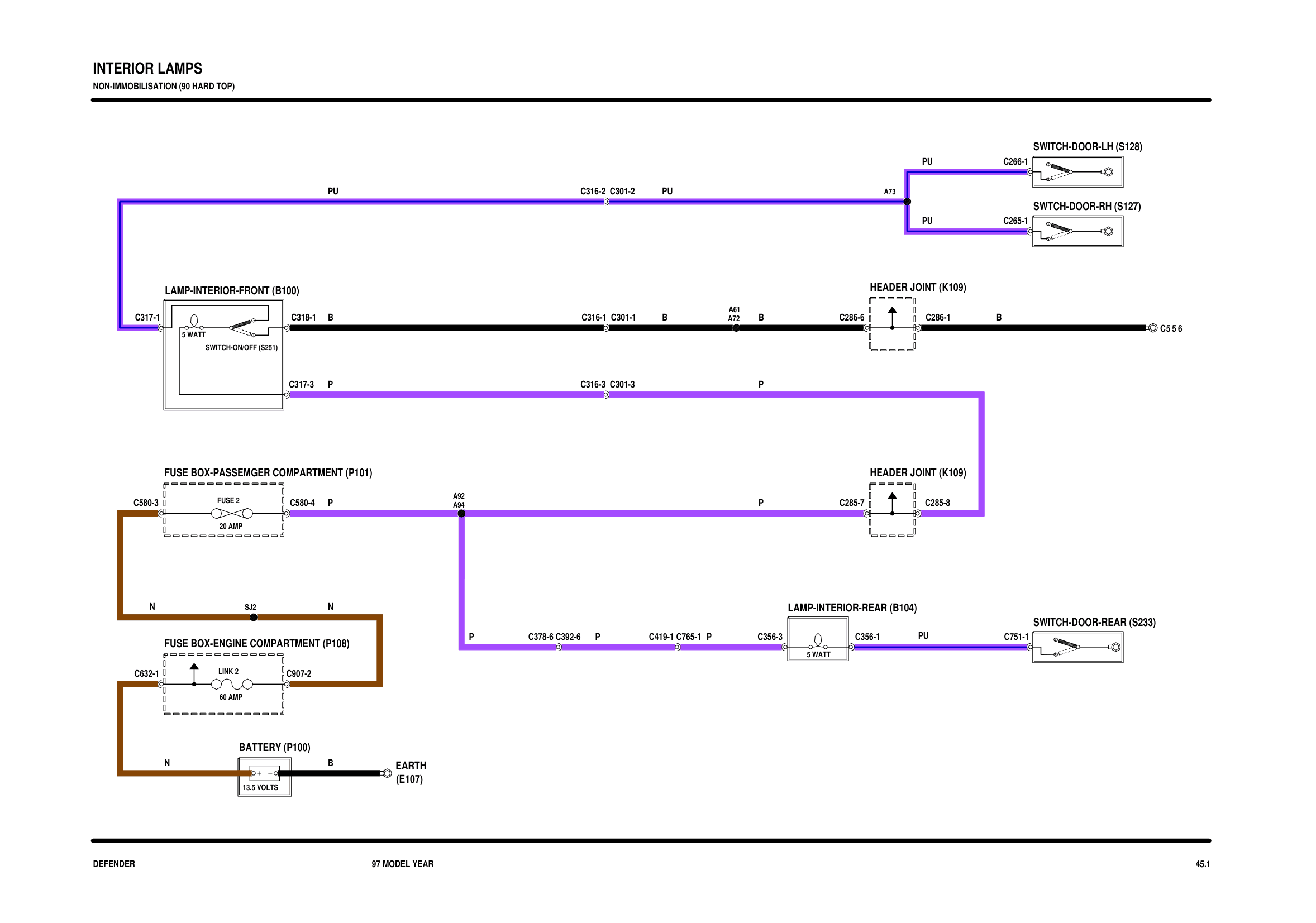

INTERIOR LAMPS

NON-IMMOBILISATION (90 HARD TOP)

SWITCH-DOOR-LH (S128)

PU C266-1

PU C316-2 C301-2 PU A73

SWTCH-DOOR-RH (S127)

PU C265-1

LAMP-INTERIOR-FRONT (B100) HEADER JOINT (K109)

A61

C317-1 1 C318-1 B C316-1 C301-1 B A72 B C286-6 C286-1 B

C 5 5 6

5 WATT 2

SWITCH-ON/OFF (S251)

C317-3 P C316-3 C301-3 P

FUSE BOX-PASSEMGER COMPARTMENT (P101) HEADER JOINT (K109)

FUSE 2 A92

C580-3 C580-4 P A94 P C285-7 C285-8

20 AMP

N SJ2 N LAMP-INTERIOR-REAR (B104)

SWITCH-DOOR-REAR (S233)

P C378-6 C392-6 P C419-1 C765-1 P C356-3 C356-1 PU C751-1

FUSE BOX-ENGINE COMPARTMENT (P108)

5 WATT

C632-1 LINK 2 C907-2

60 AMP

BATTERY (P100)

N B EARTH

(E107)

13.5 VOLTS

DEFENDER 97 MODEL YEAR 45.1
