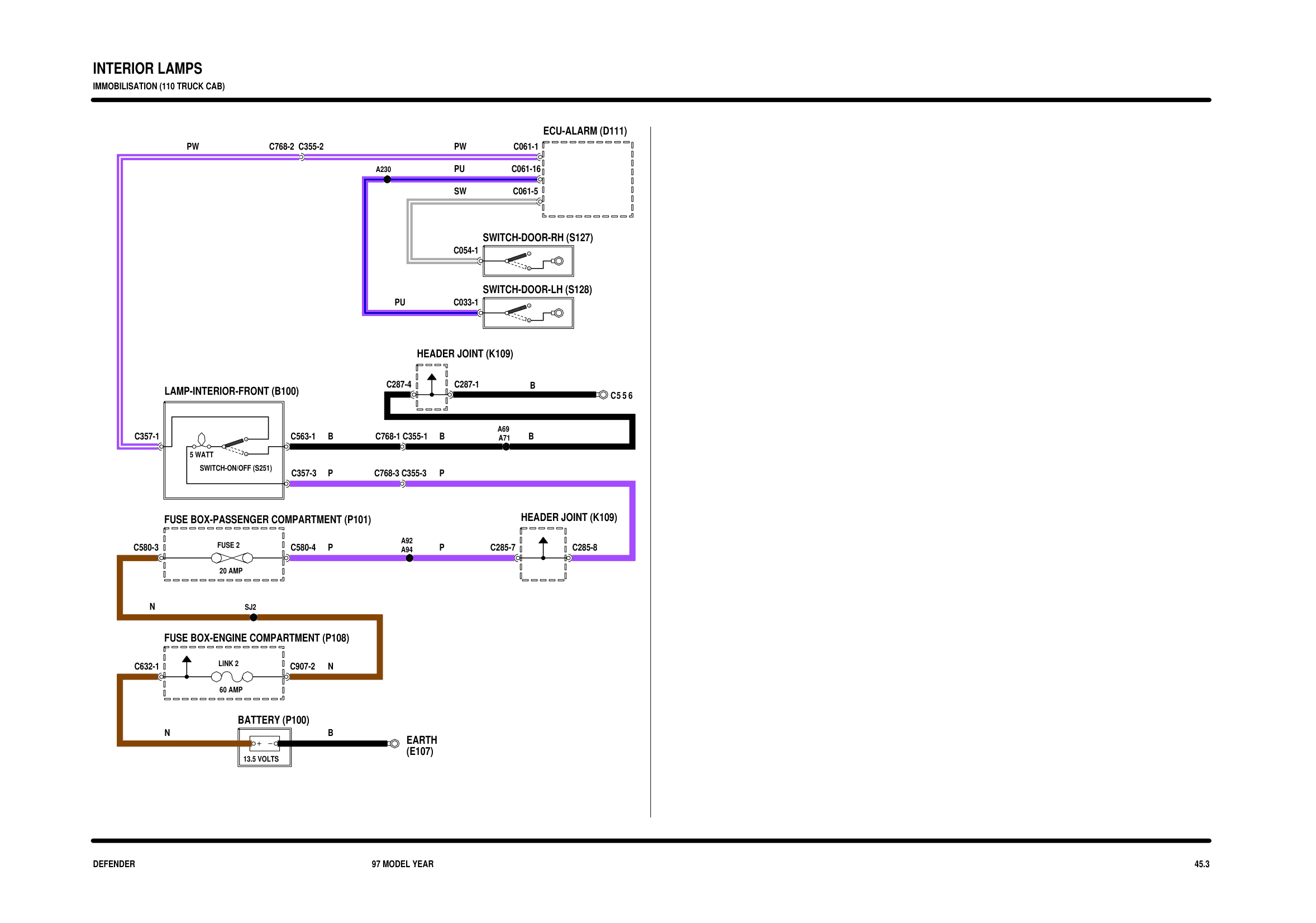

Interior lamps

INTERIOR LAMPS

IMMOBILISATION (110 TRUCK CAB)

ECU-ALARM (D111)

PW C768-2 C355-2 PW C061-1

A230 PU C061-16

SW C061-5

SWITCH-DOOR-RH (S127)

C054-1 1

SWITCH-DOOR-LH (S128)

PU C033-1 1

HEADER JOINT (K109)

C287-4 C287-1 B

LAMP-INTERIOR-FRONT (B100) C 5 5 6

A69

C357-1 1 C563-1 B C768-1 C355-1 B A71 B

5 WATT 2

SWITCH-ON/OFF (S251)

C357-3 P C768-3 C355-3 P

FUSE BOX-PASSENGER COMPARTMENT (P101) HEADER JOINT (K109)

FUSE 2 A92

C580-3 C580-4 P A94 P C285-7 C285-8

20 AMP

N SJ2

FUSE BOX-ENGINE COMPARTMENT (P108)

C632-1 LINK 2 C907-2 N

60 AMP

BATTERY (P100)

N B

EARTH

(E107)

13.5 VOLTS

DEFENDER 97 MODEL YEAR 45.3
