Interior lamps

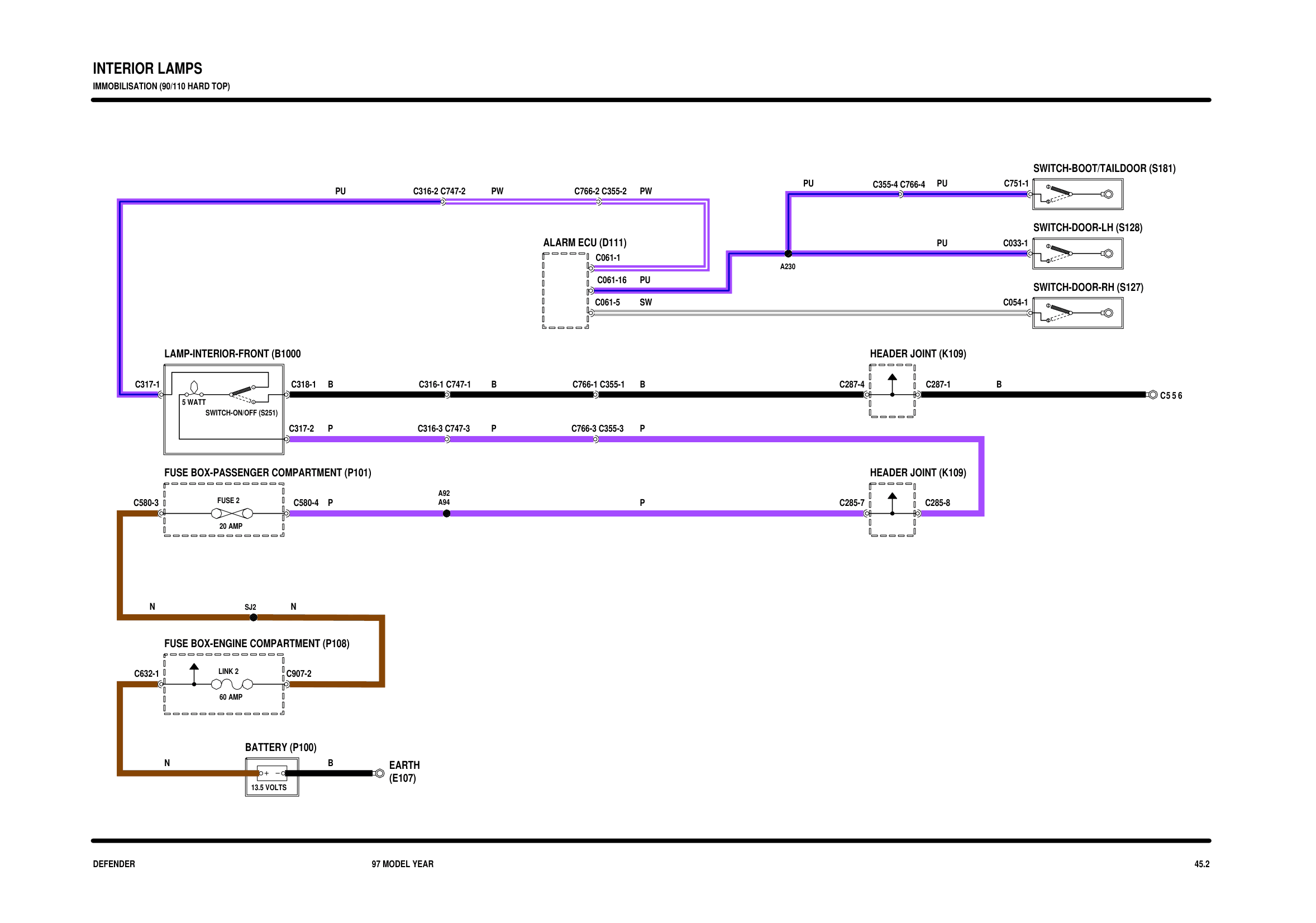

INTERIOR LAMPS

IMMOBILISATION (90/110 HARD TOP)

SWITCH-BOOT/TAILDOOR (S181)

PU C355-4 C766-4 PU C751-1

PU C316-2 C747-2 PW C766-2 C355-2 PW

SWITCH-DOOR-LH (S128)

ALARM ECU (D111) PU C033-1

C061-1

A230

C061-16 PU

SWITCH-DOOR-RH (S127)

C061-5 SW C054-1

LAMP-INTERIOR-FRONT (B1000 HEADER JOINT (K109)

C317-1 1 C318-1 B C316-1 C747-1 B C766-1 C355-1 B C287-4 C287-1 B

C 5 5 6

5 WATT 2

SWITCH-ON/OFF (S251)

C317-2 P C316-3 C747-3 P C766-3 C355-3 P

FUSE BOX-PASSENGER COMPARTMENT (P101) HEADER JOINT (K109)

A92

C580-3 FUSE 2 C580-4 P A94 P C285-7 C285-8

20 AMP

N SJ2 N

FUSE BOX-ENGINE COMPARTMENT (P108)

C632-1 LINK 2 C907-2

60 AMP

BATTERY (P100)

N B EARTH

(E107)

13.5 VOLTS

DEFENDER 97 MODEL YEAR 45.2
