Starter motor refit

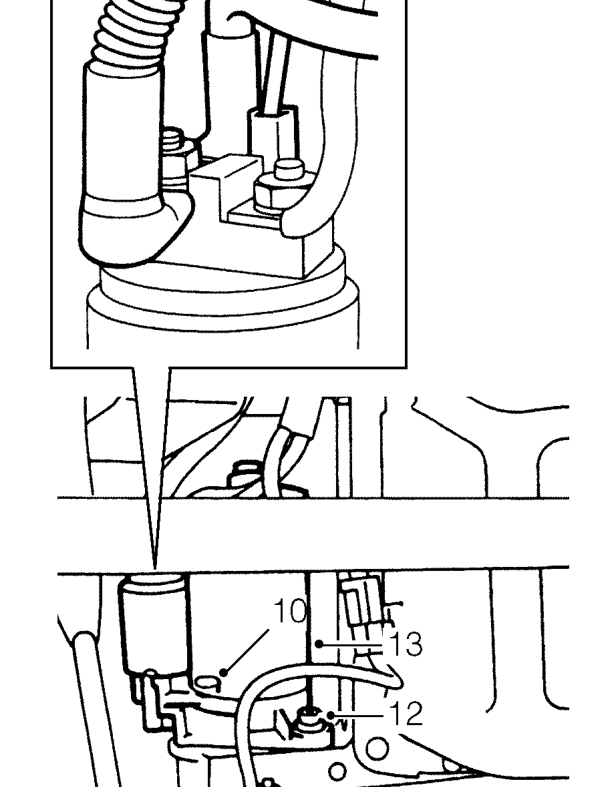

STARTER MOTOR Refit

Service repair no - 86.60.01 14. Ensure mating faces are clean.

15. Locate starter motor and fit bottom bolt finger
1. Position vehicle on ramp.
2. Disconnect battery negative lead. 16. Lower ramp.
3. Remove RH front heated oxygen sensor. See 17. Fit top bolt and tighten to FUEL SYSTEM, Repair, heated oxygen 18. Connect feed wires to solenoid terminal and sensor (H02s)
4. Remove front bolt and loosen rear bolt securing 19. Connect Lucar to solenoid. catalyst heat shield. Lower front edge of heat 20. Raise ramp. shield. 21. Tighten bottom starter motor bolt to
5. Remove bolt securing starter motor heat shield to RH engine mounting bracket. 22. Manoeuvre heat shield into position and secure
6. Release heat shield clip from starter motor solenoid and move aside for access. 23. Align heat shield to RH engine mounting bracket
7. Lower ramp.
24. Align catalyst heat shield and harness clip. Fit
25. Fit heated oxygen sensor.

26. Reconnect battery negative lead.
8. Disconnect Lucar from solenoid.
9. Remove nut and disconnect feed wires from solenoid.
10. Remove top bolt securing starter motor.
11. Raise ramp.
12. Remove bottom bolt securing starter motor.
13. Remove starter motor.

tight.

42 Nm (31 lbf.ft).

secure with nut.

42 Nm (31 lbf.ft).

clip to solenoid.

and fit retaining bolt.

and tighten front bolt. Tighten rear bolt. See FUEL SYSTEM, Repair, heated oxygen sensor (H02s); Refit
