ELECTRONIC CONTROL MODULE (ECM) INTAKE AIR TEMPERATURE (IAT) SENSOR

Service repair no - 18.30.01 Service repair no - 18.30.09

Remove Remove

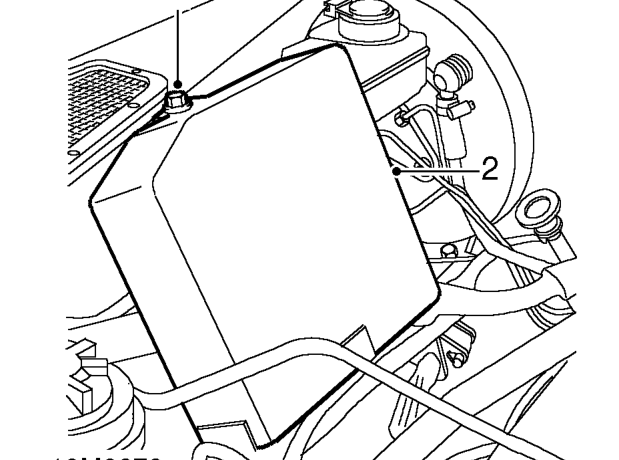

Remove remove – Service repair no - 18.30.01 Service repair no - 18.30.09
  1. Remove screw securing ECM cover.
  2. Remove cover.

Refit

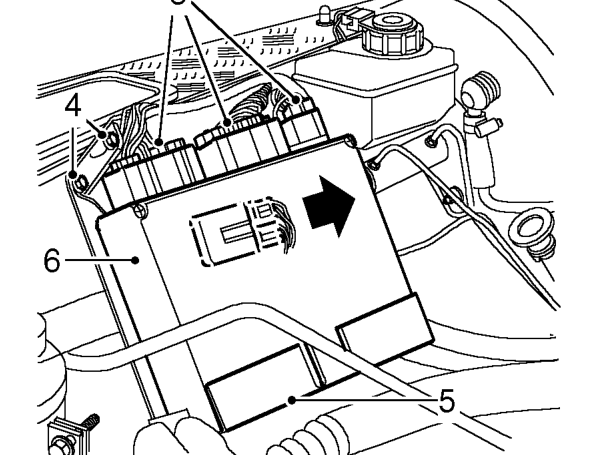

Remove remove – Remove cover.
  1. Disconnect 3 multiplugs from ECM.
  2. Remove 2 screws securing ECM.
  3. Release ECM from 2 lower retainers.
  4. Remove ECM.

Refit

  1. Position ECM and secure to lower retainers.
  2. Fit and tighten screws securing ECM.
  3. Connect multiplugs.
  4. Fit cover and secure with screw.

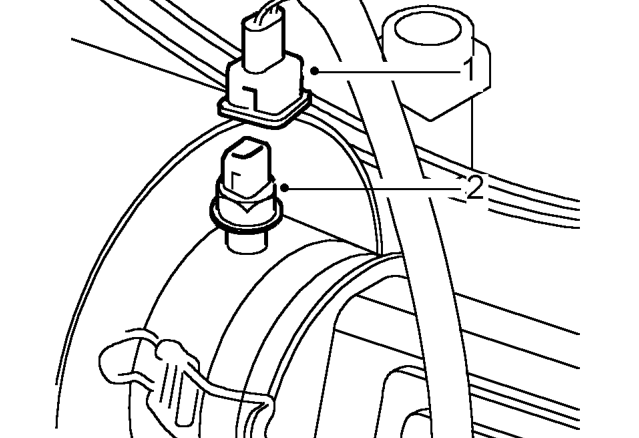

Remove remove – Fit cover and secure with screw.
  1. Disconnect multiplug from IAT sensor.
  2. Remove IAT sensor from air filter housing.
  3. Clean sensor and mating face on filter housing.
  4. Fit sensor and tighten to 8 Nm (6 lbf.ft).
  5. Connect multiplug.
