Do not carry out further dismantling if component

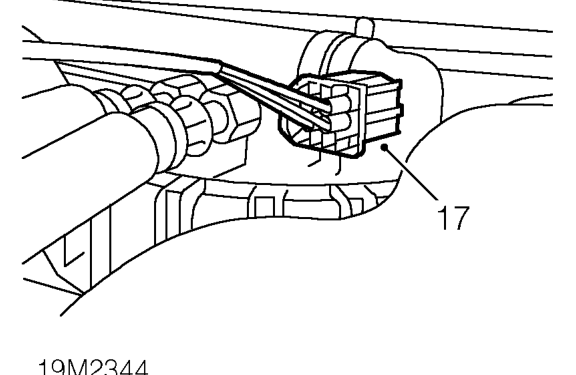

17. Disconnect multiplug and remove clip securing

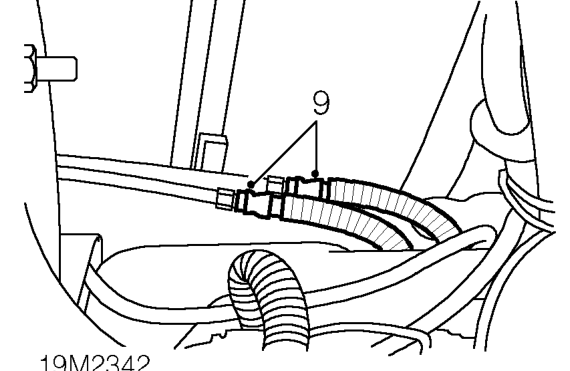

9. Disconnect fuel feed and return hose unions.
10. Plug the connections. 18. With assistance, lower jack, remove fuel tank

Do not carry out further dismantling if component

is removed for access only.

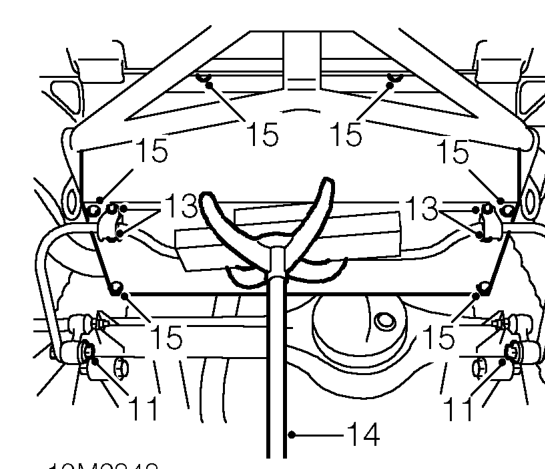

11. Loosen 2 anti-roll bar link bolts.
12. Mark location of anti-roll bar straps.
13. Remove 4 bolts securing anti-roll bar straps and swing bar down clear of fuel tank.
14. Position transmission jack under fuel tank cradle to support fuel tank. 19. Remove 3 screws securing heat shield. Remove

CAUTION: Use a block of wood or hard 20. Release 2 fuel cut-off valves and remove valve rubber pad to protect fuel tank.

15. Remove 6 bolts securing fuel tank cradle. 21. Loosen clip and remove breather hose from fuel
16. Lower fuel tank sufficiently to gain access to fuel pump multiplug. 22. Remove fuel feed and return hoses from fuel

harness to fuel hoses.

cradle and fuel tank.

heat shield.

and pipe assembly. Remove and discard 2 rubber seals.

pump.

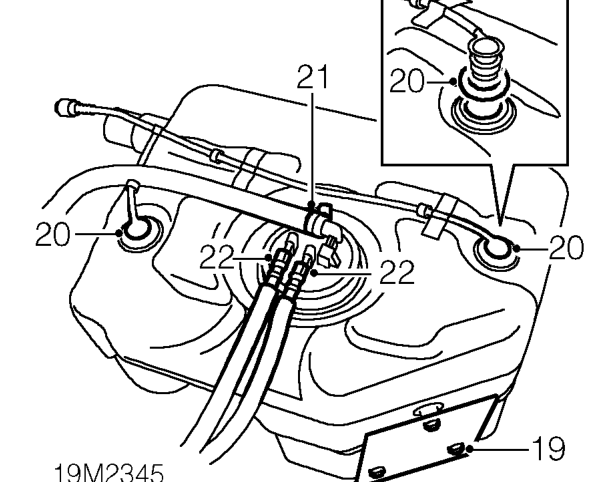

pump.
