Fuel systemAir cleaner element throttle cable

AIR CLEANER ELEMENT THROTTLE CABLE

Service repair no - 19.10.10 Service repair no - 19.20.06

Remove Remove

Remove remove – Service repair no - 19.10.10 Service repair no - 19.20.06

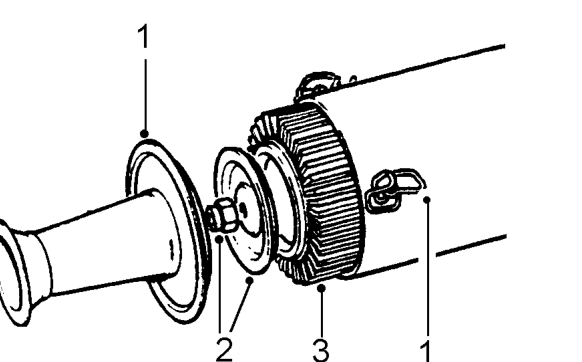

  1. Release 3 toggle clips and remove inlet tube.
  2. Remove nut and end plate retaining air cleaner element.
  3. Remove air cleaner element and discard.

Refit

  1. Clean inlet tube and inside of air cleaner.
Remove remove – Clean inlet tube and inside of air cleaner.

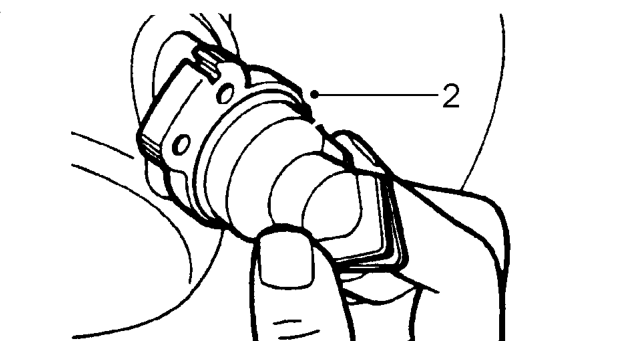

  1. Squeeze open dump valve fitted at base of air cleaner and check that rubber is flexible and in good condition. Replace if necessary.
  2. Fit new air cleaner element.
  3. Fit retaining plate and fit and tighten nut.
  4. Fit intake tube and secure toggle clips.
Remove remove – Fit intake tube and secure toggle clips.

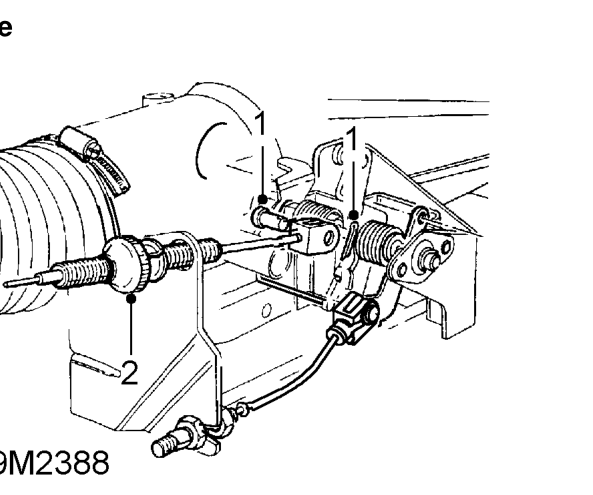

  1. Remove split pin and clevis pin securing cable to throttle lever. Discard split pin.
  2. Release cable adjusting nut from abutment bracket.
Remove remove – Release cable adjusting nut from abutment bracket.

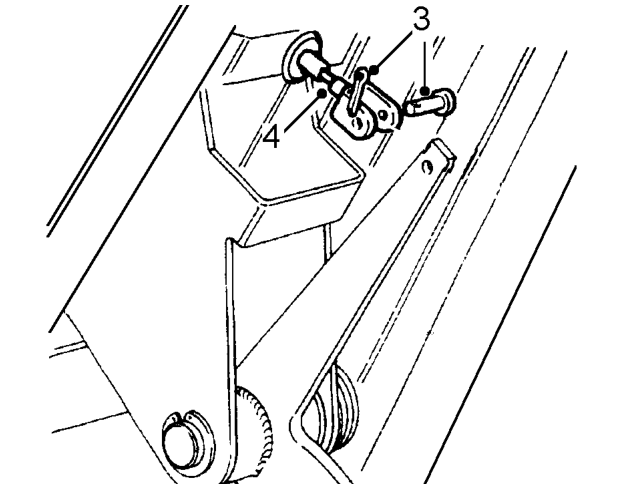

  1. Remove split pin and clevis pin securing cable to throttle pedal. Discard split pin.
  2. Release cable from bulkhead and remove cable.
