KNOCK SENSOR - RH

Service repair no - 18.30.30

  • CAUTION: Due to the sensitivity of the
  • sensor, do not apply tape or sealant to
  • sensor threads.

Remove

  1. Raise vehicle on ramp.

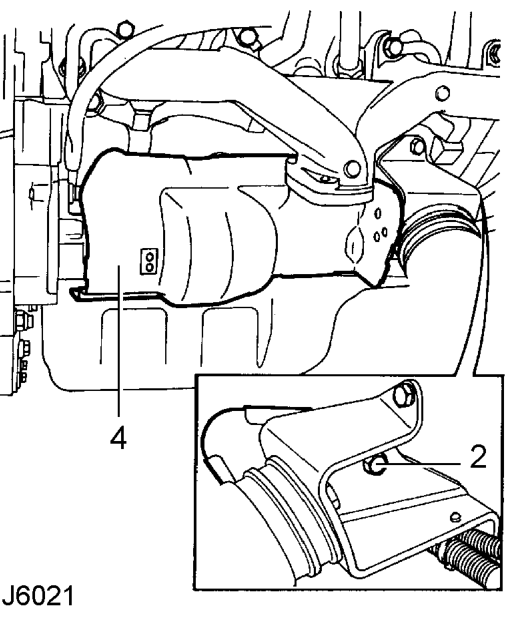

Knock sensor - rh – Raise vehicle on ramp.

Refit

  1. Remove bolt securing starter motor heat shield to engine RH mounting.
  2. Release heat shield clip from starter solenoid. 10. Manoeuvre heat shield into position.
  3. Move heat shield aside to gain access to knock 11. Secure heat shield clip to solenoid. sensor. 12. Align heat shield to mounting and secure with
  4. Lower vehicle.

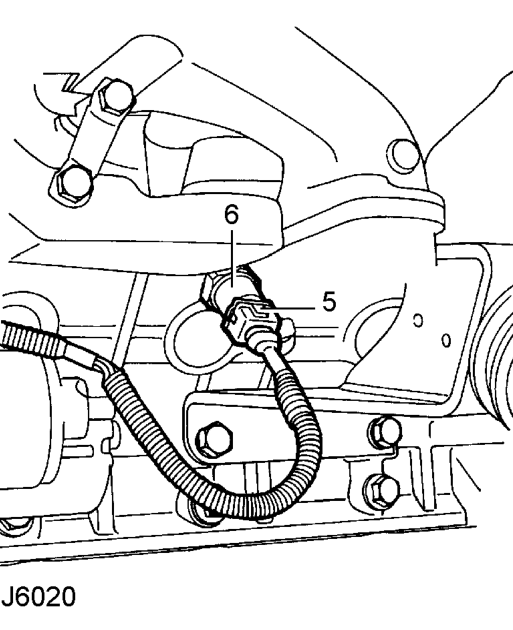

Knock sensor - rh – Lower vehicle.
  1. Depress spring clip and disconnect sensor multiplug.
  2. Remove sensor.
  3. Clean sensor and mating face.
  4. Fit sensor and tighten to 16 Nm (12 lbf.ft).
  • CAUTION: Failure to tighten sensor to
  • correct torque will result in malfunction or
  • sensor damage.
  1. Connect multiplug to sensor.

bolt.
