Repair › Fuel pump
Fuel systemFuel pump

FUEL PUMP

Service repair no - 19.45.08

Remove

  1. Disconnect battery negative lead.
  2. Remove fuel tank. See fuel tank

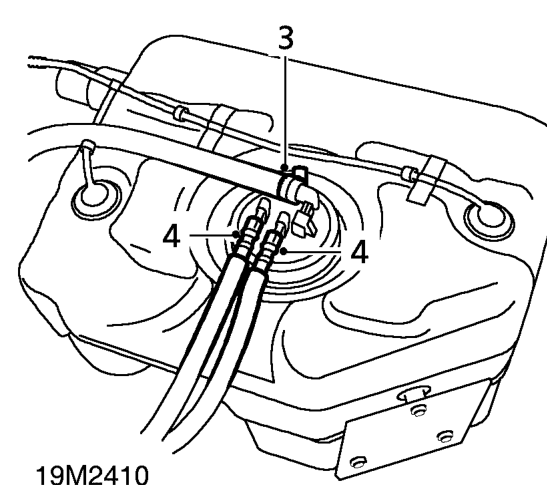

Fuel pump – Remove fuel tank. See fuel tank
  1. Loosen clip and disconnect breather hose from fuel pump.
  2. Remove fuel feed and return hoses from fuel pump.

operation.

Refit

  1. Fit breather hose and tighten clip.
  2. Fit fuel tank.
Operation. – Fit fuel tank.

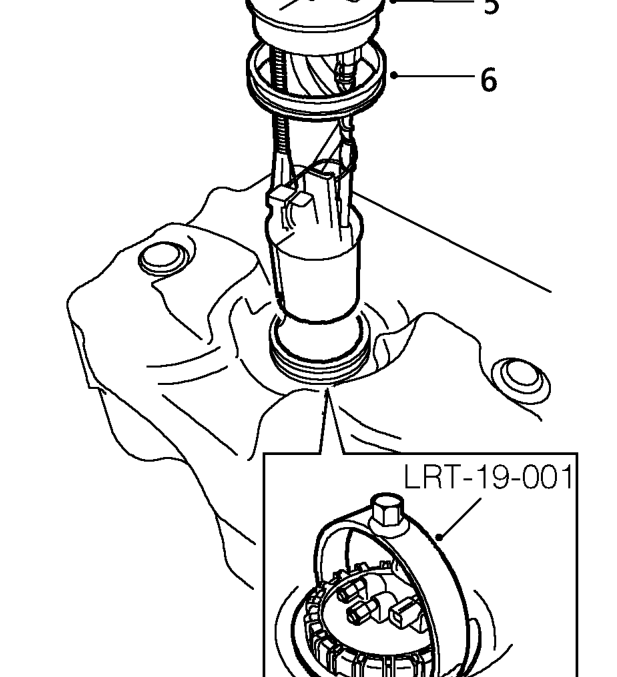

  1. Using tool LRT-19-001 remove locking ring securing pump. Withdraw fuel pump from fuel tank.
  • WARNING: A quantity of fuel will be
  • retained in body of pump. Care must be
  • taken to prevent spillage during above
  1. Remove and discard sealing ring.
  2. Fit new sealing ring to pump and fit pump.
  3. Fit locking ring and using tool LRT-19-001, tighten to 48 Nm (35 lbf.ft).
  4. Fit feed and return hoses to pump.

See fuel tank; Refit
