FUEL AND TEMPERATURE GAUGES

Service repair no - 88.25.26 - Fuel gauge Service repair no - 88.25.14 - Temperature gauge

Remove

  1. Remove instrument panel. See Instrument panel

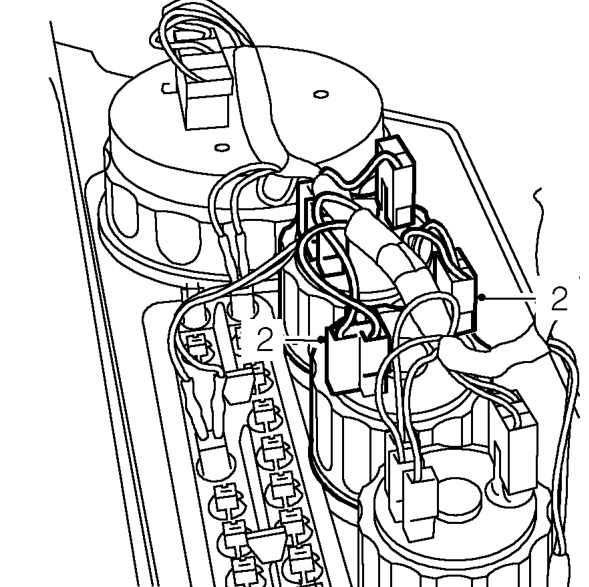

Fuel and temperature gauges – Remove instrument panel. See Instrument panel
  1. Release illumination bulb holder and multiplug from gauge.
  2. Unscrew retaining ring and remove gauge. See tachometer
  3. Remove ’O’ ring from gauge.

Refit

  1. Fit ’O’ ring to gauge and position gauge into instrument panel.
  2. Fit retaining ring, align gauge and tighten.
  3. Fit bulb holder ensuring wires are connected to correct terminals.
  4. Fit instrument panel. See Instrument panel; Refit
