Land Rover Defender V8i Workshop Manual Supplement21 · Instruments
21 · Electrical

Tachometer

Make
Land Rover
Model
Defender V8i Workshop Manual Supplement
Section
Repair › Tachometer
InstrumentsTachometer

TACHOMETER

Service repair no - 88.30.21

Remove

  1. Remove instrument panel. See Instrument panel
Tachometer – Remove instrument panel. See Instrument panel

Refit

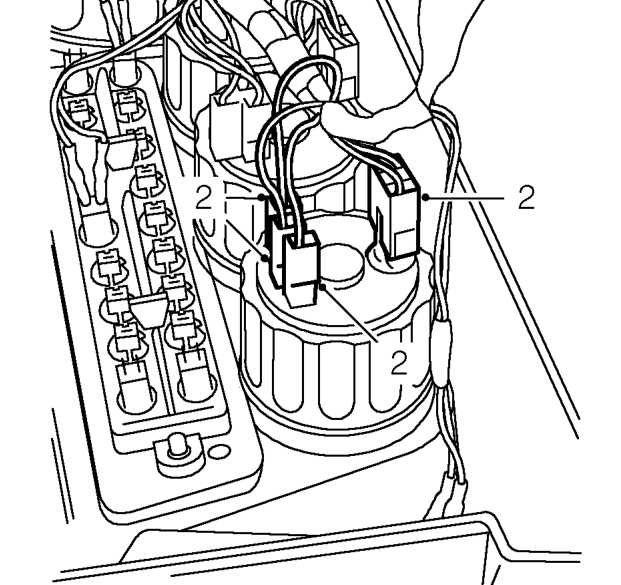

  1. Release illumination bulb holder and wiring connectors from tachometer. ’-’ = BLACK ’+’ = WHITE ’2’ = RED
Tachometer – Release illumination bulb holder and wiring connectors from tachometer. ’-’ = BLACK ’+’ =

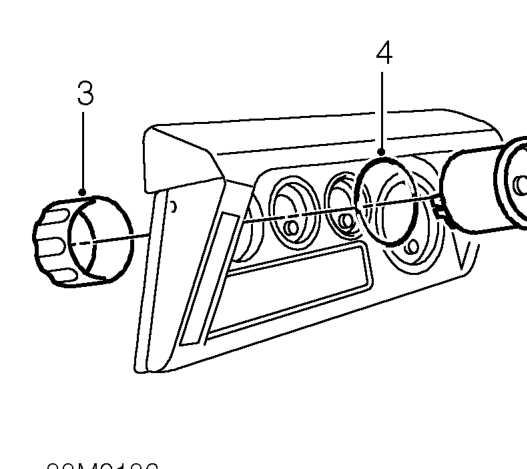

  1. Unscrew retaining ring and remove tachometer.
  2. Remove ’O’ ring from tachometer.
  3. Fit ’O’ ring to tachometer and position tachometer into instrument panel.
  4. Fit retaining ring, align tachometer and tighten.
  5. Fit bulb holder ensuring wires are connected to correct terminals.
  6. Fit instrument panel. See Instrument panel; Refit
