NEUTRAL SWITCH

Neutral switch

Service repair no - 41.20.64

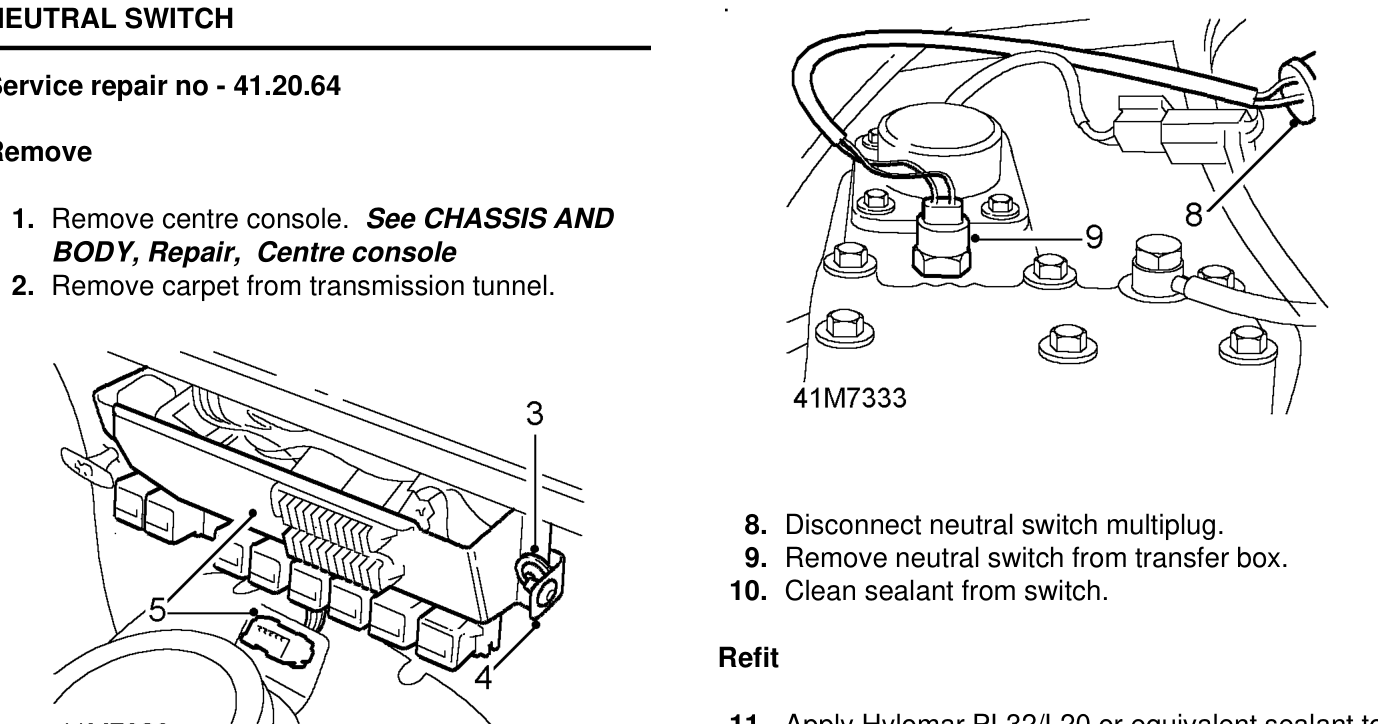

Remove

  1. Remove centre console. See CHASSIS AND BODY, Repair, Centre console
  2. Remove carpet from transmission tunnel.
  3. Disconnect neutral switch multiplug.
  4. Remove neutral switch from transfer box.
  5. Clean sealant from switch.

Refit

  1. Apply Hylomar PL32/L20 or equivalent sealant to
  2. Fit switch to transfer box and tighten to
  3. Remove 2 screws securing relay panel.
  4. Retain 2 centre console screw brackets and 13. Connect switch multiplug. spacers. 14. Fit tunnel cover.
  5. Release connector (J1962) from bracket on 15. Secure connector (J1962) to bracket on tunnel tunnel cover and move relay panel aside to gain access to tunnel cover top fixings. 16. Position centre console screw bracket and
  6. Fit tunnel carpet.
Neutral switch – Fit tunnel carpet.
  1. Fit centre console.

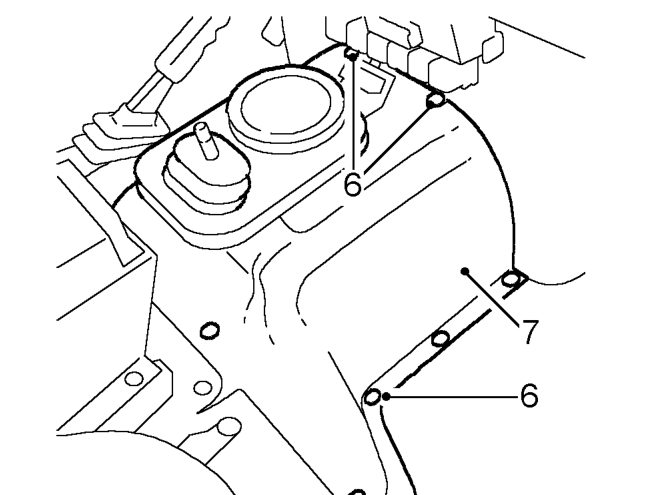

  2. Remove 15 screws securing tunnel cover.
  3. Release and remove tunnel cover.

neutral switch. 25 Nm (18 lbf.ft).

cover.

spacers and fit relay panel.

See CHASSIS AND BODY, Repair, Centre console; Refit
