LT230Q TRANSFER GEARBOX

Service repair no - 41.20.25/99

Remove

The transfer gearbox should be removed from underneath the vehicle, using a hydraulic transmission jack and adaptor plate LRT-99-010.

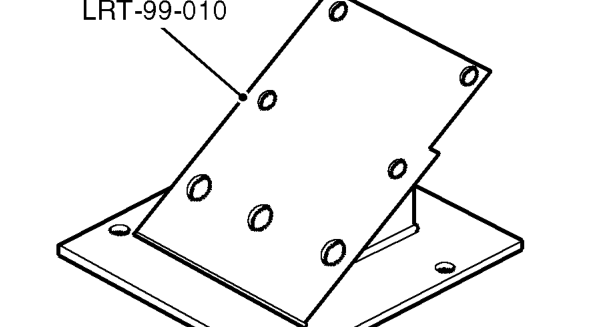

Lt230q transfer gearbox – The transfer gearbox should be removed from underneath the vehicle, using a hydraulic tran

WARNING: Where use of a transmission jack is necessary, it is absolutely essential to follow the manufacturers’ instructions to ensure safe and effective use of the equipment.

  1. Position vehicle on a ramp.
  2. Select LOW range gear and leave vehicle in neutral.
  3. Disconnect battery negative lead.
  4. Remove centre console. See CHASSIS AND BODY, Repair, centre console

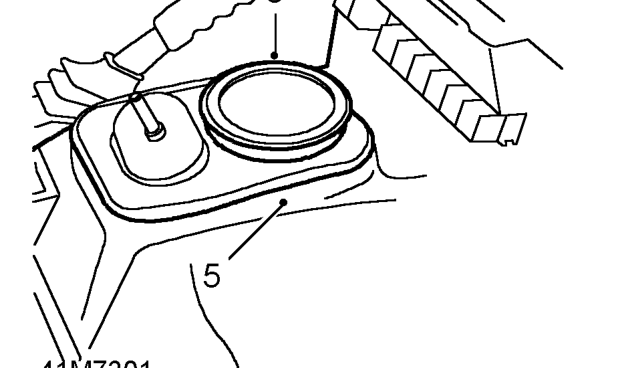

Lt230q transfer gearbox – Remove centre console. See CHASSIS AND BODY, Repair, centre console
  1. Remove carpet from transmission tunnel.
  2. Remove high-low selector housing cover from transmission tunnel.

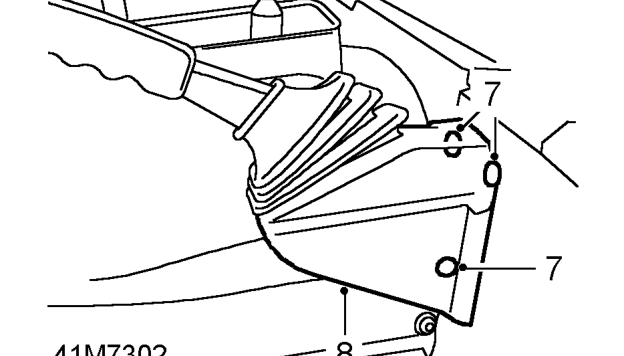

Lt230q transfer gearbox – Remove high-low selector housing cover from transmission tunnel.
  1. Remove 3 trim studs securing handbrake lever gaiter.
  2. Release handbrake lever gaiter for access to handbrake cable linkage.
