Land Rover Defender V8i Workshop Manual Supplement12 · Transfer gearbox
12 · Transmission

Lt230q transfer gearbox (page 4 of 4)

Make
Land Rover
Model
Defender V8i Workshop Manual Supplement
Section
Repair
Transfer gearboxLt230q transfer gearbox · page 4 of 4
Diagram

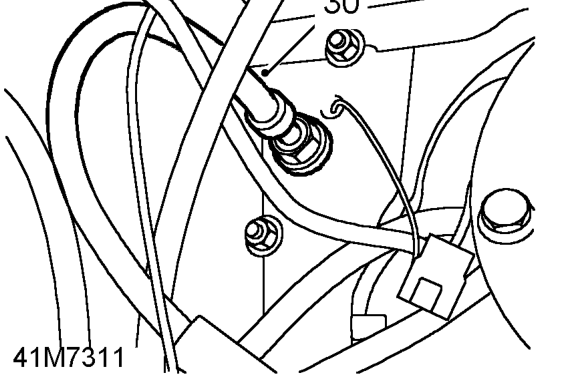

  1. Release handbrake outer cable from body.
  2. Remove 4 central bolts from transfer gearbox
Remove 4 central bolts from transfer gearbox
  1. Adjust hoist to take weight of transfer gearbox.

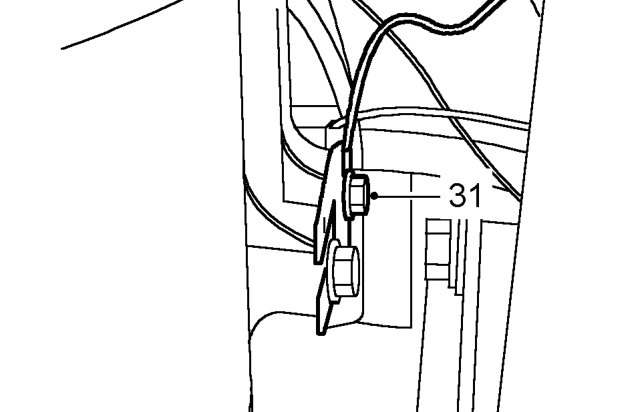

  2. Remove bolt securing ground lead to RH side of transfer gearbox.
  3. Remove bolt securing handbrake cable heat shield. Remove heat shield.

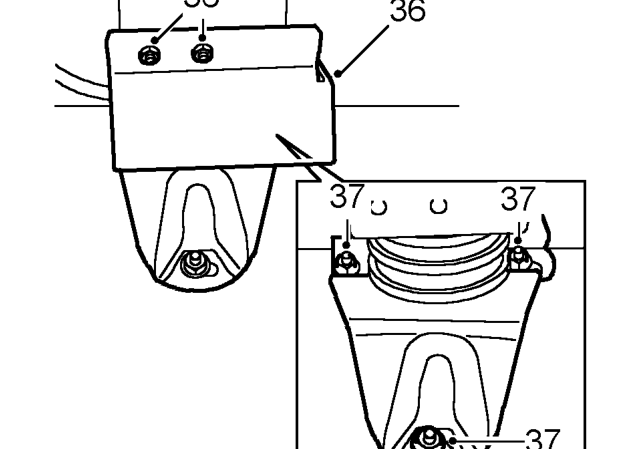

  4. Position adaptor plate, LRT-99-010, and secure 36. Remove 2 nuts and bolts securing heat shield to to transmission jack with 4 bolts.

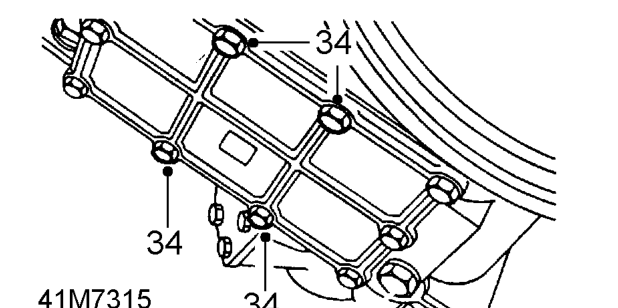

  5. Remove 3 nuts and bolts securing LH gearbox
Remove 3 nuts and bolts securing LH gearbox

bottom cover, move jack into position and secure adaptor plate to transfer box.

bottom cover, move jack into position and secure adaptor plate to transfer box.

transfer gearbox LH mounting bracket. Remove heat shield.

mounting bracket to chassis.
