TD5 Defender
MANUAL GEARBOX
9
REPAIR

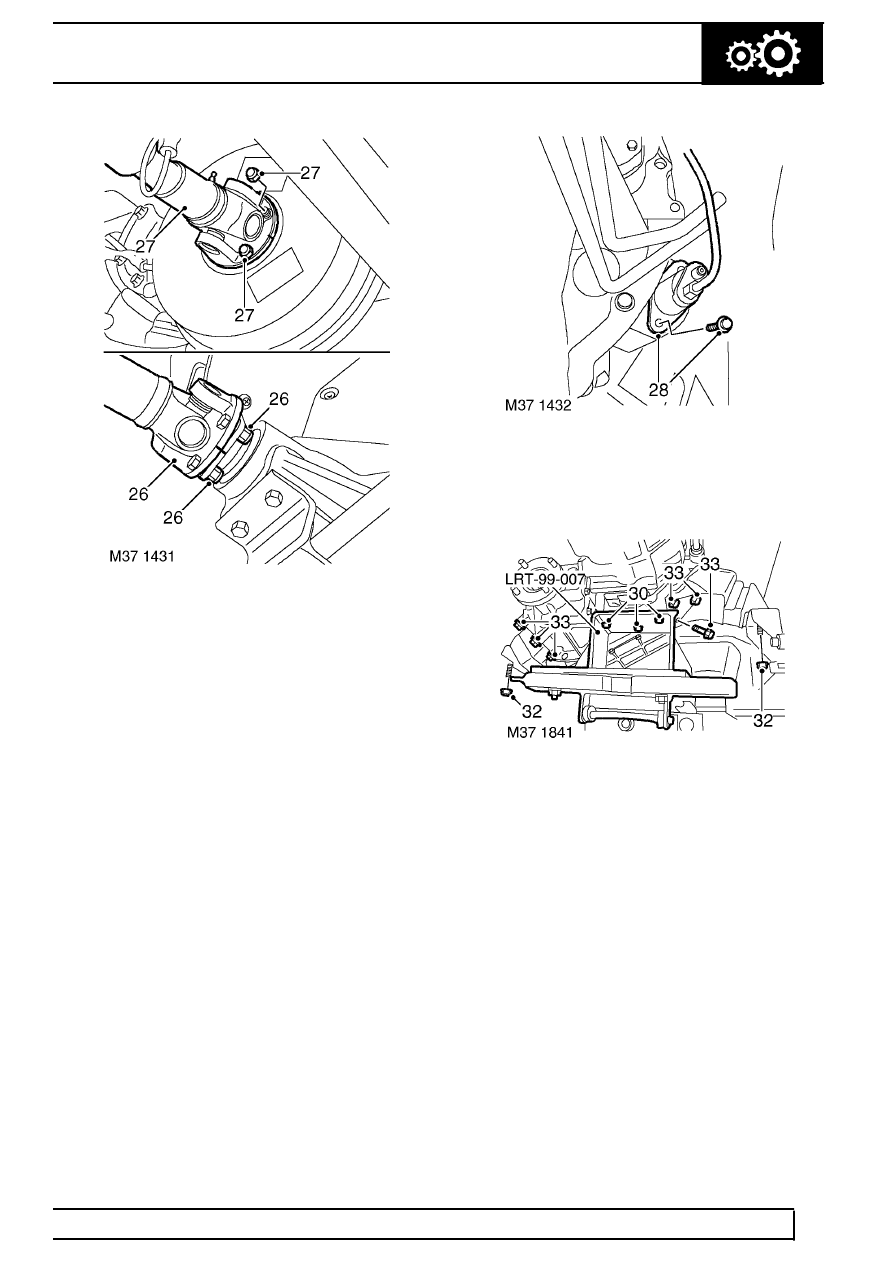

26. Remove 4 nuts securing front propeller shaft to
transfer gearbox, release propeller shaft from
output drive flange.
27. Remove 4 nuts, release rear propeller shaft from
brake drum.
28. Remove 2 bolts securing clutch slave cylinder,
release slave cylinder and position aside.
29. Fit support plate LRT-99-007 to gearbox jack.
30. Position gearbox jack and support plate to
gearbox and secure with 3 bolts.
31. Support the weight of gearbox.
32. Remove 4 nuts securing LH and RH mountings
to chassis and transfer gearbox mounting
brackets.
33. Remove bolts securing mountings to gearbox,
raise gearbox and remove both mountings and
heat shield from LH mounting and brackets.
