TD5 Defender
37
MANUAL GEARBOX
10
REPAIR

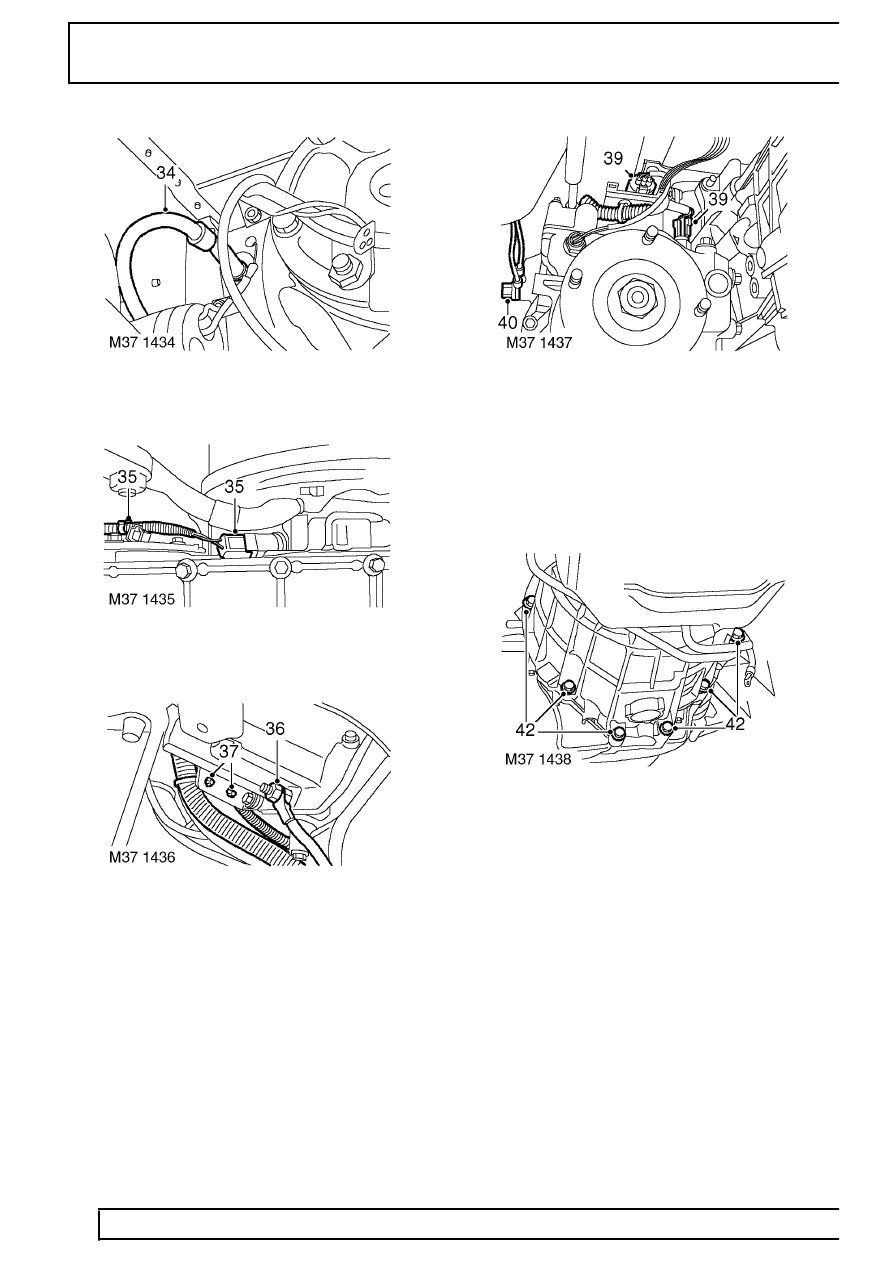

34. Pull handbrake cable through heel board.
35. Disconnect multiplug from speed sensor and
release harness from clip on transfer gearbox.
36. Remove retaining nut and release battery earth
lead from transfer gearbox.
37. Release body harness clips from bracket on top
of transfer gearbox.
38. Lower gearbox jack sufficiently to allow transfer
gearbox lever to clear tunnel.
39. Disconnect 2 Lucars from differential lock switch,
multiplug from reverse light switch and multiplug
from low ratio detect switch - if fitted and release
multiplug from bracket.
40. Remove bolt and release earth leads from RH
side of transfer gearbox.
41. Support the weight of the engine.
42. Remove 6 bolts securing clutch housing to
engine.
43. With assistance, remove gearbox from engine.
