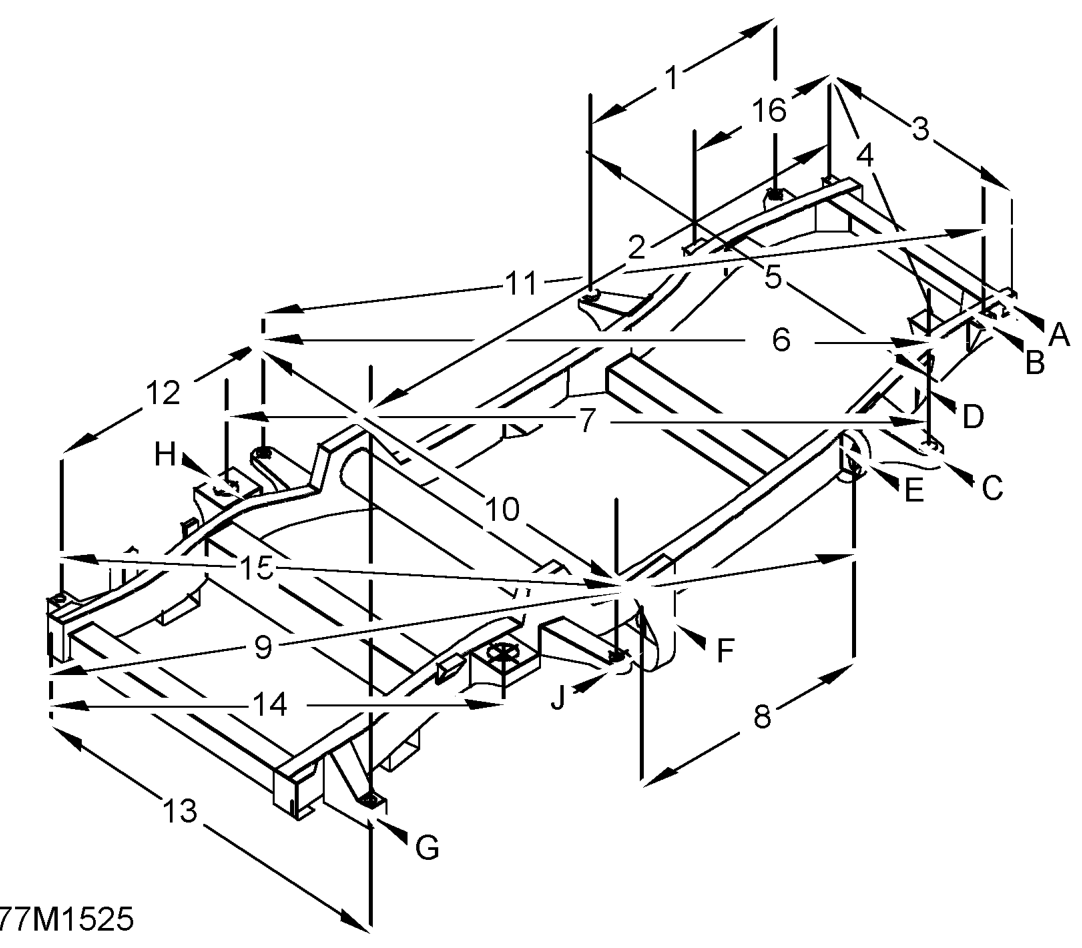

Alignment jig dimensions

ALIGNMENT JIG DIMENSIONS

1. 780mm (30 11/16 in) 14. 1356mm (53 13/16 in) 2. 4100mm (161 9/16 in) 15. 1487mm (58 1/2 in) 3. 838mm (33 in) 16. 941mm (37 1/10 in) 4. 1696mm (66 13/16 in) 5. 1321mm (52 in) 6. 1792mm (70 1/2 in) A = No. 1 body mount RH and LH 7. 2099mm (82 11/16 in) B = Front spring seat RH and LH 8. 953mm (37 1/2in.) C = Front outrigger RH and LH 9. 2803mm (110 7/16 in) D = No. 2 body mount RH and LH 10. 1321mm (52 in) E = C-spanner bracket RH and LH 11. 2281mm (88 5/8 in) F = Rear trailing link mounting bracket RH and LH 12. 1487mm (58 1/2 in) G = No. 5 body mount RH and LH 13. 991mm (39 in) H = Rear spring seat RH and LH J = Rear outrigger RH and LH

All dimensions taken at centre line of set screw or set screw hole.
