Supplementary restraint systemSystem components

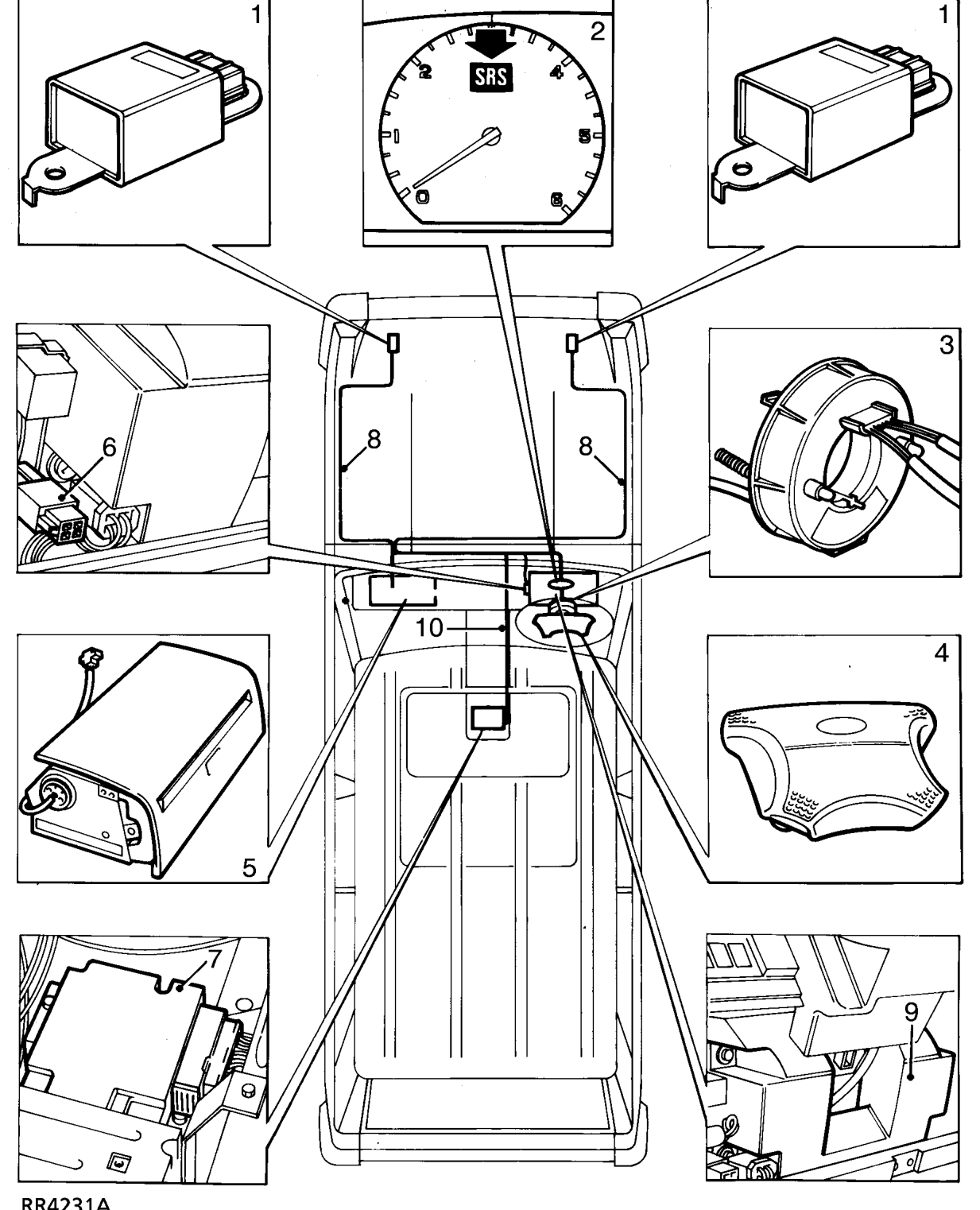

SYSTEM COMPONENTS
1. Airbag crash sensors (distributed SRS) 2. SRS warning light (airbag) 3. Rotary coupler 4. Driver’s airbag module 5. Passenger’s airbag module 10. Airbag harness
6. Airbag diagnostic socket 7. Airbag diagnostic control unit 8. Airbag harness (distributed SRS) 9. Knee bolsters (where fitted)
