WARNING: Instruction 7 MUST BE carried

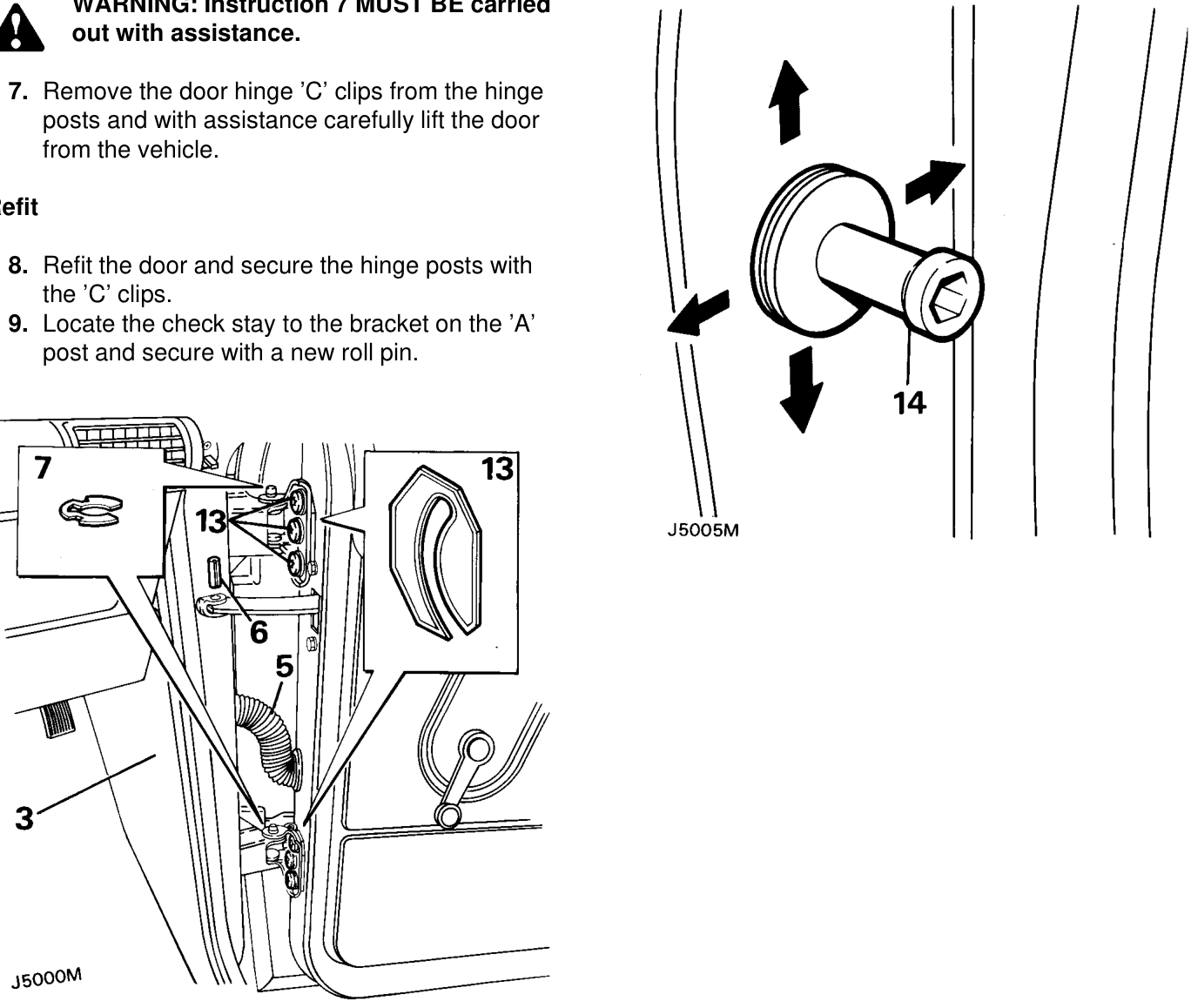

FRONT DOOR 10. Feed the door harness and speaker leads

Service repair no - 76.28.01

Remove

11. Refit the footwell side panel.
1. Disconnect battery negative lead. 12. Check the location of the door and the operation
2. Detach the door seal at the lower section of the ’A’ post.
3. Carefully remove the two retaining buttons from 13. The door can be adjusted up and down or in and the trim panel on the side of the footwell and ease out the panel.
4. Disconnect the three multiplugs connecting the door harness and speaker leads.
5. Detach the convoluted grommet from the ’A’ post 14. The door lock striker can be adjusted by and withdraw the door harness and speaker leads.
6. Set the door in the open position without engaging the check stay; then remove the roll pin securing the check stay at the ’A’ post.

through the aperture in the ’A’ post, fully open the door and reconnect the multiplugs in the footwell, take up the slack and refit the convoluted grommet to the ’A’ post.

of the door lock. If necessary, adjust the door and striker.

out of the opening by loosening the six screws securing the hinges to the door, and by the addition or removal of shims between the hinge and door.

loosening the striker and moving it in the appropriate direction or by adding and removing spacing washers between the striker and ’B’ post.

WARNING: Instruction 7 MUST BE carried

out with assistance.

7. Remove the door hinge ’C’ clips from the hinge posts and with assistance carefully lift the door from the vehicle.

Refit

8. Refit the door and secure the hinge posts with the ’C’ clips.
9. Locate the check stay to the bracket on the ’A’ post and secure with a new roll pin.
