Air intake plenum cowl

AIR INTAKE PLENUM COWL

Service repair no - 76.11.08

Remove Refit

1. Remove the windscreen wiper arms. 10. Reverse removal procedure.
2. Remove the securing nuts and the steel and rubber washers from the wiper spindles.
3. Open the vehicle bonnet [hood].
4. Remove the rubber seal from the cowl flange.
5. Release the screen washer tubes from the washer jets on the cowl.
6. Remove the centre bolt securing the cowl centre section.
7. Remove the retainers securing the centre section to the outer section.
8. Detach the centre section from the bulkhead.

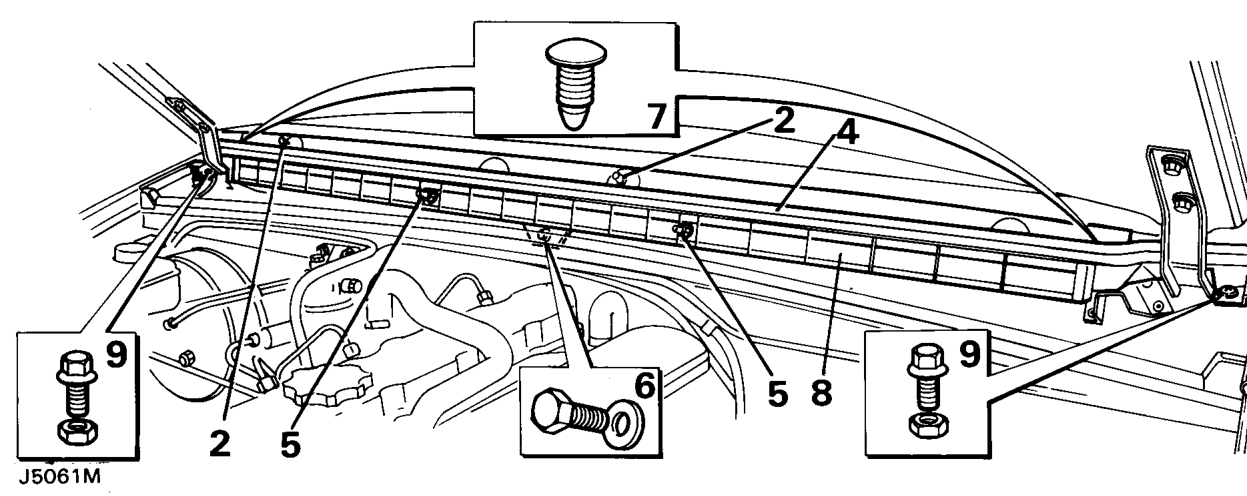

9. Remove the nuts and bolts and detach the outer sections of the cowl.
