’D’ post trim casing body side opening windows

’D’ POST TRIM CASING BODY SIDE OPENING WINDOWS

Service repair no - 76.13.73 Service repair no - 76.81.18

Remove Remove

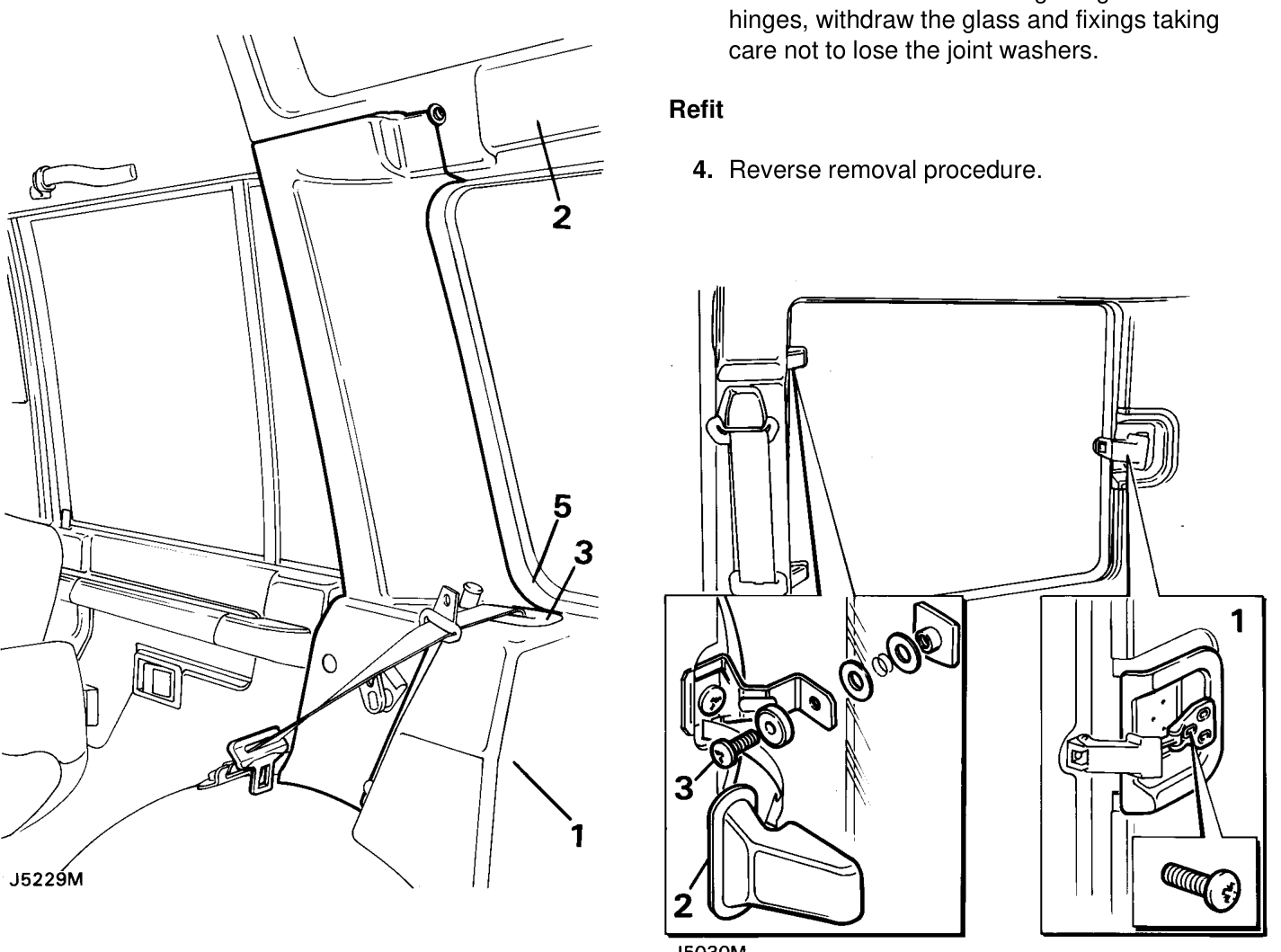

1. Remove the rear compartment lower trim panel. See this section.
1. Remove the screws securing the catch to the body and detach the catch trim.
2. Remove the hinge finishers from the hinges.
3. Remove the screws securing the glass to the hinges, withdraw the glass and fixings taking

care not to lose the joint washers.

Refit

4. Reverse removal procedure.
2. Remove the alpine light trim casing. See this section.
3. Release the rear seat belt from the guide attached to the casing.
4. Fold down the rear seats.
5. Release the D’ post casing from the rear side window seal and carefully ease the casing from the fasteners.

Refit

6. Reverse removal procedure.
