Chassis and bodyRear grab handle

REAR GRAB HANDLE

Service repair no - 76.58.35

Remove

  1. Remove speaker and rear quarter trim panel.
  2. Detach the foam strip.
  3. Remove the four securing bolts and detach the handle.

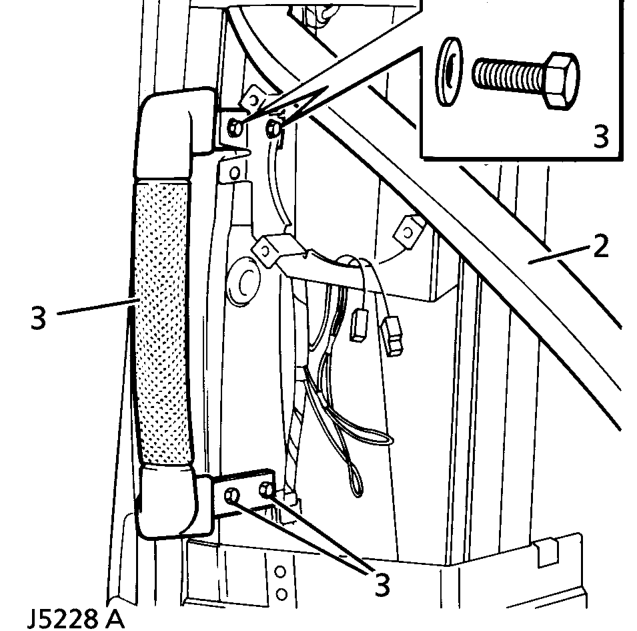

Rear grab handle – Remove the four securing bolts and detach the handle.

Refit

  1. Reverse removal procedure.
