Seat cushion

10. Remove the pivot bolts and washers securing FRONT SEAT BELTS the hinge links to the seat squab.
11. If necessary remove the clips securing the cover Service repair no - 76.73.10 and detach the cover. Remove

Refit

12. Reverse removal procedure.

Seat cushion

Remove

13. Remove the seat from the vehicle.
14. Remove the seat squab.
15. Remove the pivot bolts and washers securing the hinge bracket and detach the bracket.

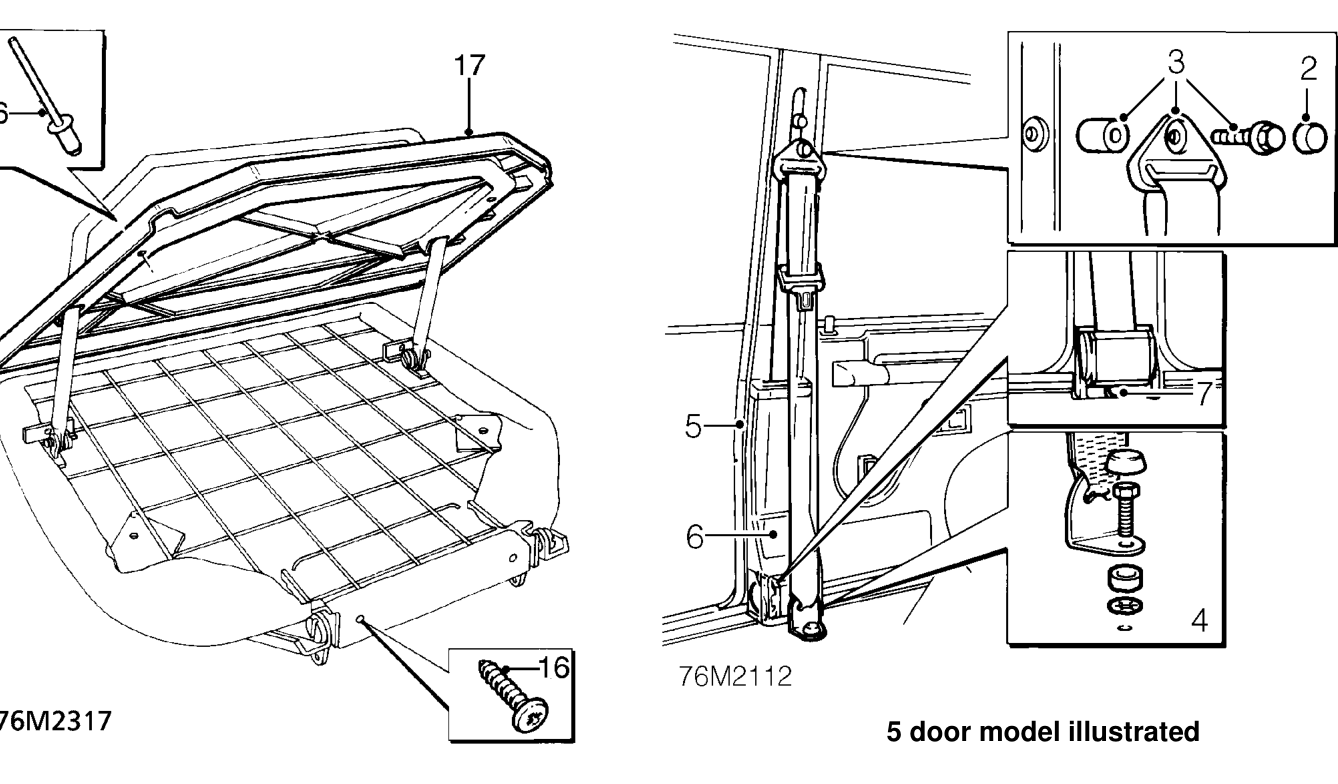

16. Invert the seat base and remove the screws and rivets securing the base cover to the base.
17. Raise the seat base cover, to gain access to the stay pivot bolts, remove the bolts and washers and withdraw the stay and seat base cover.
18. If necessary remove the clips and detach the cushion cover.
1. Move the front seat to the fully forward position or tilt the seat forward (3 door vehicles).
2. Remove cover to gain access to the seat belt upper mounting bolt.

NOTE: 3 door models have a non-adjustable, upper mounting.

3. Remove the flanged securing bolt to release the upper mounting and spacer.
4. Remove the cover and bolt securing the lower mounting to the floor.
5. Detach the door seals from the ’B’ post sufficiently to allow removal of the lower trim panel from the post.
6. Release the seat belt from the split section at the top of the trim panel and withdraw the panel.
7. Remove the securing bolt and detach the inertia reel from the bottom of the ’B’ post.

5 door model illustrated

Refit

19. Reverse removal procedure.
