SEAT BASE SEAT BASE RUNNERS

Service repair no - 76.70.06/25 Remove

  • WARNING: Care must be taken if the seat
  • lifting mechanism is operated when the
  • seat is removed from the base otherwise
  • personal injury could occur.

Remove

  1. Remove the bolts and withdraw the runners.
  2. Remove the seat from the base.
  3. Carefully operate the seat mechanism to raise it to the tilt position.
  4. Remove the seat from the base.
  5. Spring the release handle off its locations on the runners.
  6. Slide the runners forward sufficient to gain access to the rear securing bolts and rearward for the front bolts.

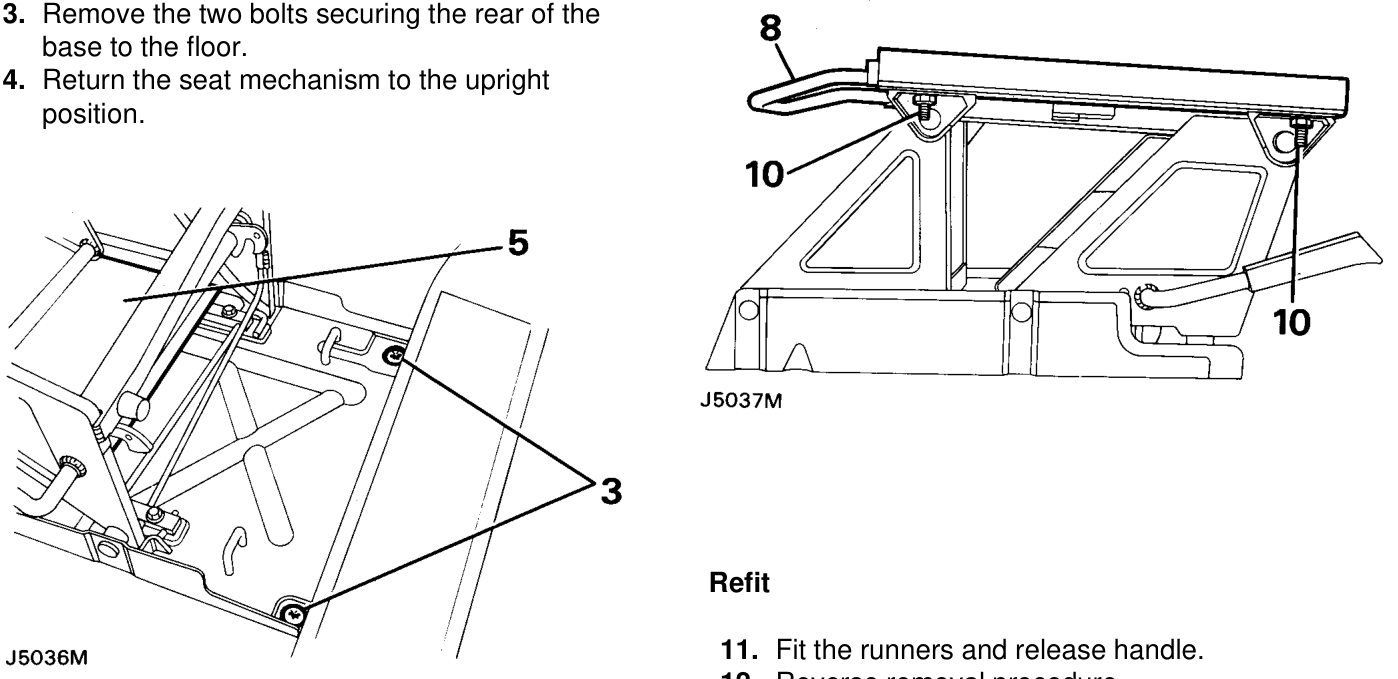

  7. Remove the two bolts securing the rear of the
Seat base seat base runners – Remove the two bolts securing the rear of the

base to the floor.

  1. Return the seat mechanism to the upright position.

Refit

  1. Fit the runners and release handle.
  2. Reverse removal procedure.
  3. Refit the seat to the base.
  4. Pull the carpet flap forward to expose the front securing bolts, remove the bolts and lift out the seat base.

Refit

  1. Reverse removal procedure.
