Sunroof assembly - manual, front and rear

SUNROOF ASSEMBLY - MANUAL, FRONT AND REAR

Service repair no - 76.83.01

Remove Refit

1. Close sunroof.
2. Remove headlining. See this section.
3. Remove screws and manual regulator from clamping frame. See this section.
4. Disconnect drain tubes from each side of clamping frame.
5. Remove 13 screws and clamping frame from upper frame. 10. Reverse removal procedure.
6. Remove upper frame assembly from roof
7. Position upper frame assembly into roof aperture.
8. Locate clamping frame and reconnect drain tubes.
9. Loosely fit screws, centralise upper frame and clamping frame assemblies and then tighten screws.

aperture.

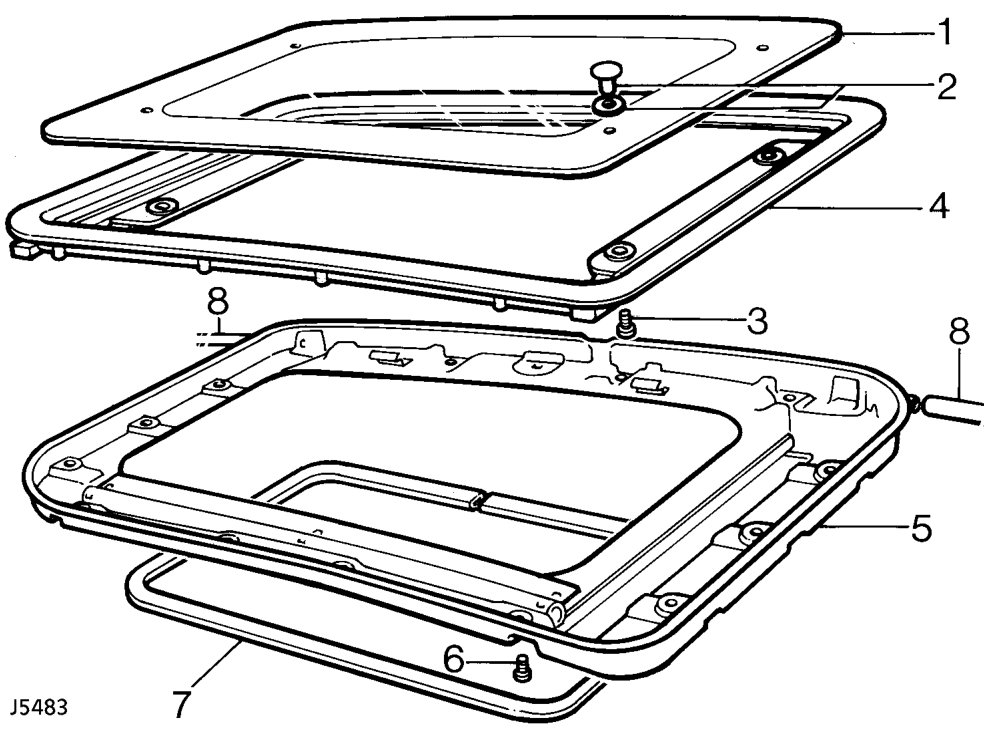

Sunroof components

1. Glass panel 2. Capnut and washer 3. Screw 4. Upper frame assembly

5. Clamping frame assembly 6. Screw 7. Edging trim 8. Drain tube
