Land Rover Discovery Body Repair Manual (1995 on)04 · Chassis and body
04 · Body & interior

All models

Make
Land Rover
Model
Discovery Body Repair Manual
Year
1995 on
Section
Repair › All models
Chassis and bodyAll models

All models

All models

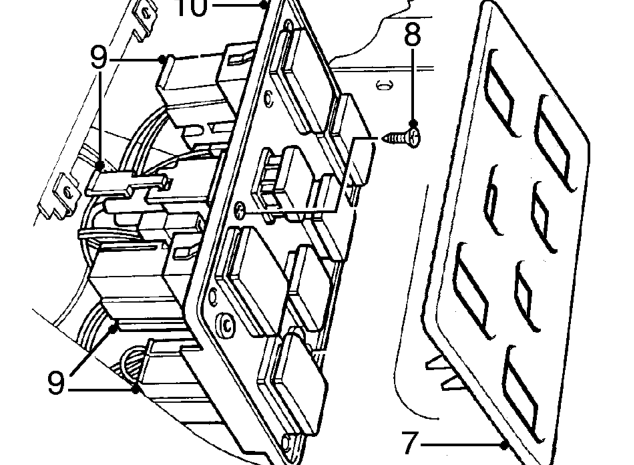

  1. Release hand brake lever gaiter from centre
  2. Remove clip and clevis pin securing cable to
  3. Remove centre console switch pack cover.
  4. Remove 4 screws securing switch pack to console.
  5. Release switch pack from console and disconnect 7 multiplugs.

NOTE: If the ’Cold Pack’ option is not fitted there will only be 5 switches in pack.

  1. Remove switch pack.

Models fitted with electric front seats

  1. Remove 4 screws securing centre console to

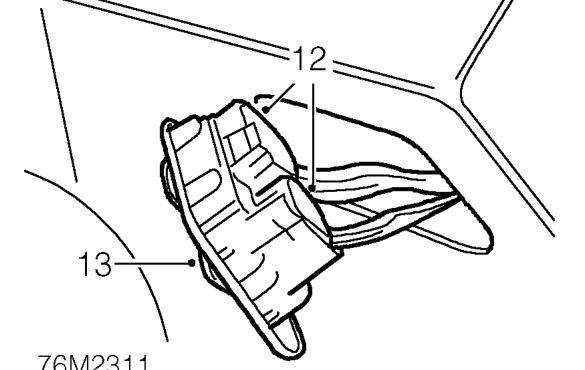

Models fitted with electric front seats – Remove 4 screws securing centre console to
  1. Raise hand brake lever, pull centre console
  2. Release electric front seat switches from centre console.
  3. Disconnect 2 multiplugs from each switch.
  4. Remove switches. 18. Disconnect cigar lighter multiplug and
  5. Remove centre console assembly.

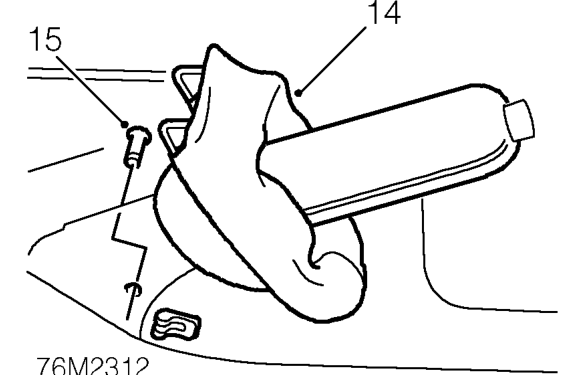

Models fitted with electric front seats – Remove centre console assembly.

console.

hand brake lever.

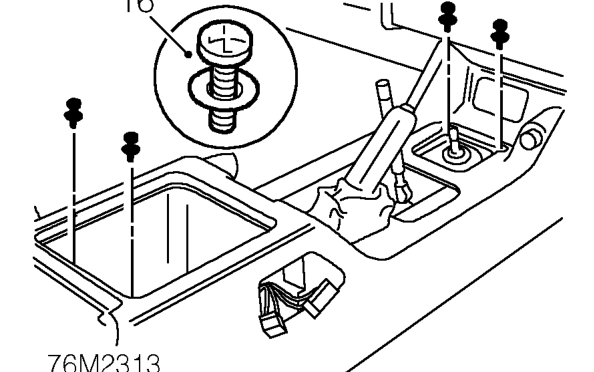

Models fitted with electric front seats – hand brake lever.

body.

rearwards to gain access to cigar lighter multiplug and illumination bulb Lucar.

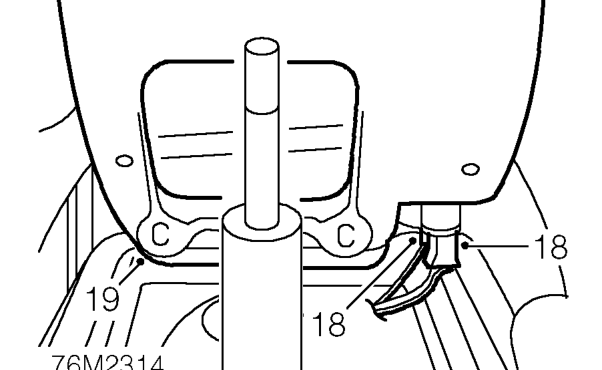

Models fitted with electric front seats – rearwards to gain access to cigar lighter multiplug and illumination bulb Lucar.

illumination bulb Lucar.
