Chassis and bodyFront seat - electric

FRONT SEAT - ELECTRIC

Service repair no - 76.77.01

Front seat - electric – Service repair no - 76.77.01

Remove

  1. With assistance: Attach suction cups to glass and lift into position, carefully align the indicators on the obscuration band with the supports. Lower screen onto body flange, check alignment and firmly press to seat glass in the aperture.
  • NOTE: The finisher on later vehicles will
  • not have cutouts, or supports fitted, as
  • shown.
  1. Align cut outs with the supports and push finisher fully onto the glass. Use a wooden block to ensure fit.
  2. Refit ’A’ post finishers and interior mirror.
  3. Refit wiper arms.
  4. Operate controls to adjust seat fully backwards and remove 2 bolts securing seat slides.
  5. Operate controls to adjust seat fully forwards.

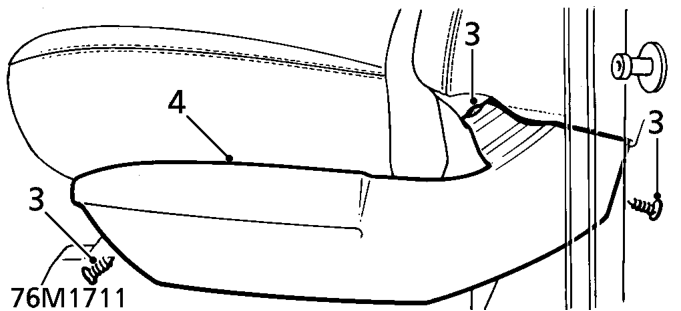

Front seat - electric – Operate controls to adjust seat fully forwards.
  1. Remove 3 studs securing seat side valance.
  2. Remove side valance.
