Front seat covers rear passenger seat

FRONT SEAT COVERS REAR PASSENGER SEAT

Service repair no - 76.70.14 Service repair no - 76.70.37

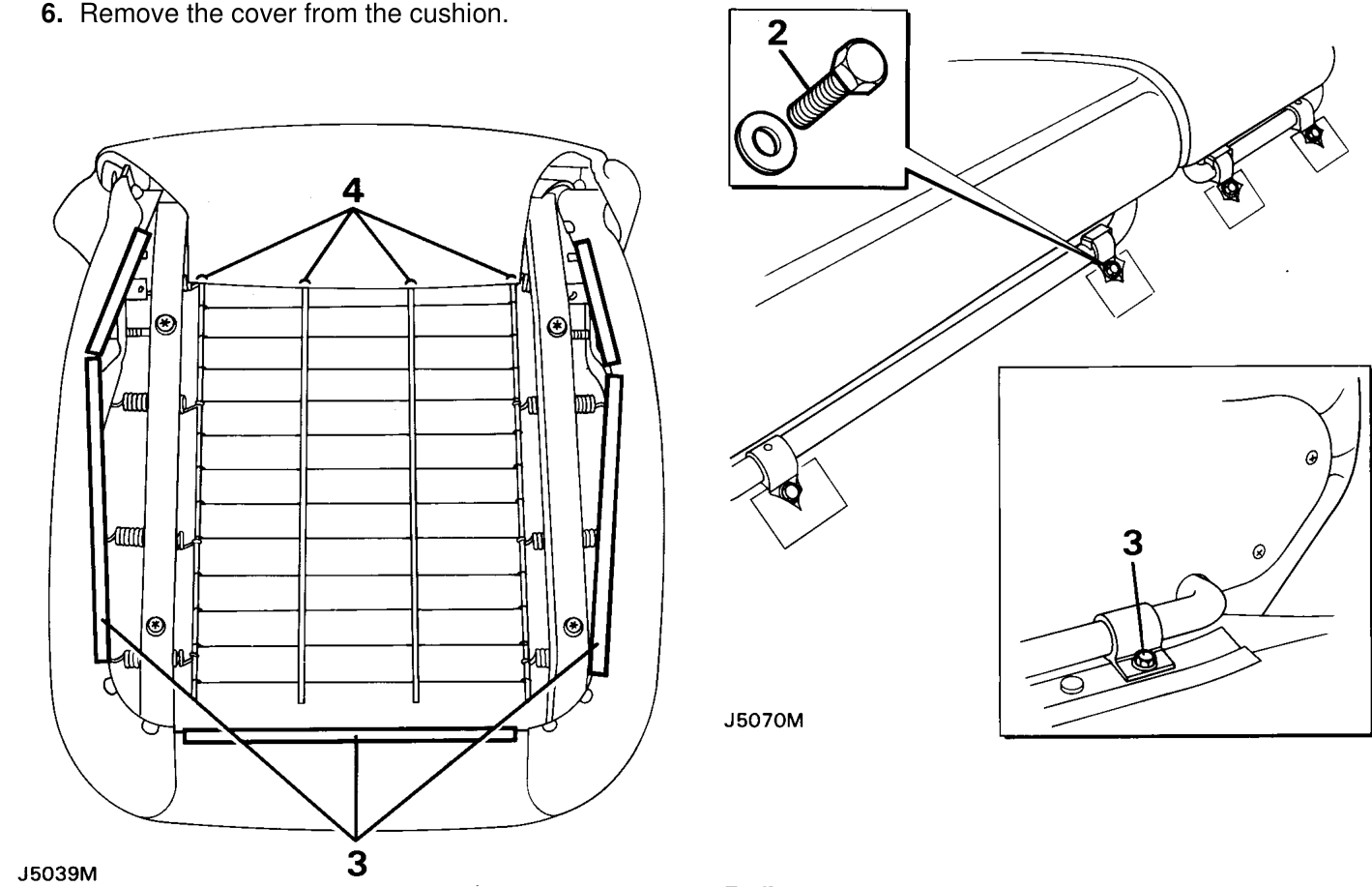

Cushion Remove

Remove

1. Remove the seat from the base.
2. Invert the seat on a suitable clean bench.
3. Detach the seat cover retaining clips from the frame.
4. Release the four wire hooks securing the squab cover to the lower spring frame.
5. Release the cushion rear clip from the frame and detach the cushion complete with cover.
1. Feed the seat belts through the seats into the rear compartment.
2. With the seats in the upright position, remove the bolts from the front of the hinges.
3. Fold the seats forward, remove the bolts from the rear of the hinges and withdraw the seats from the vehicle.
6. Remove the cover from the cushion.

Refit

Refit

7. Reverse removal procedure.
4. Reverse removal procedure.
5. Tighten fixing bolts to 8 Nm (6 lbf ft)

.
