FRONT FOLDING SEATS 3 DOOR VEHICLES

Service repair no - 76.70.01

  • WARNING: Care must be taken if the seat
  • lifting mechanism is operated when the
  • seat is removed from the base otherwise
  • personal injury could occur.

Remove

  1. Slide the seat to the full extent rearwards and remove the rear seat to base securing bolts.
  2. Slide the seat forward and remove the front seat to base securing bolts.
  3. Lift the seat from the base and withdraw from the vehicle.

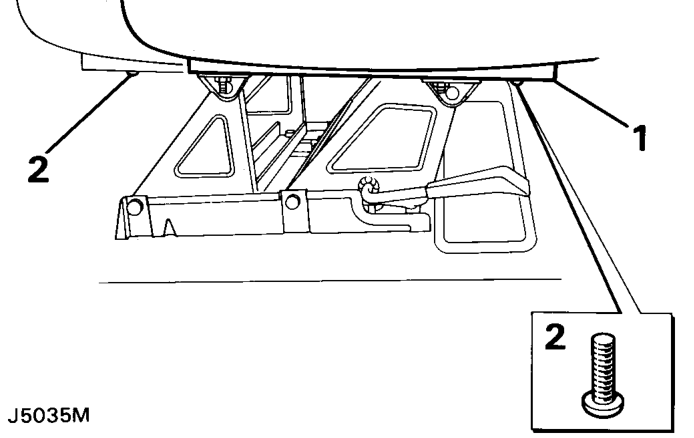

Front folding seats 3 door vehicles – Lift the seat from the base and withdraw from the vehicle.

Refit

  1. Reverse removal procedure.
  2. Tighten all securing bolts to 22 Nm (16 lbf ft)

.
