FRONT SEAT - MANUAL - 5 DOOR (96 MODELS)

Service repair no - 76.70.01

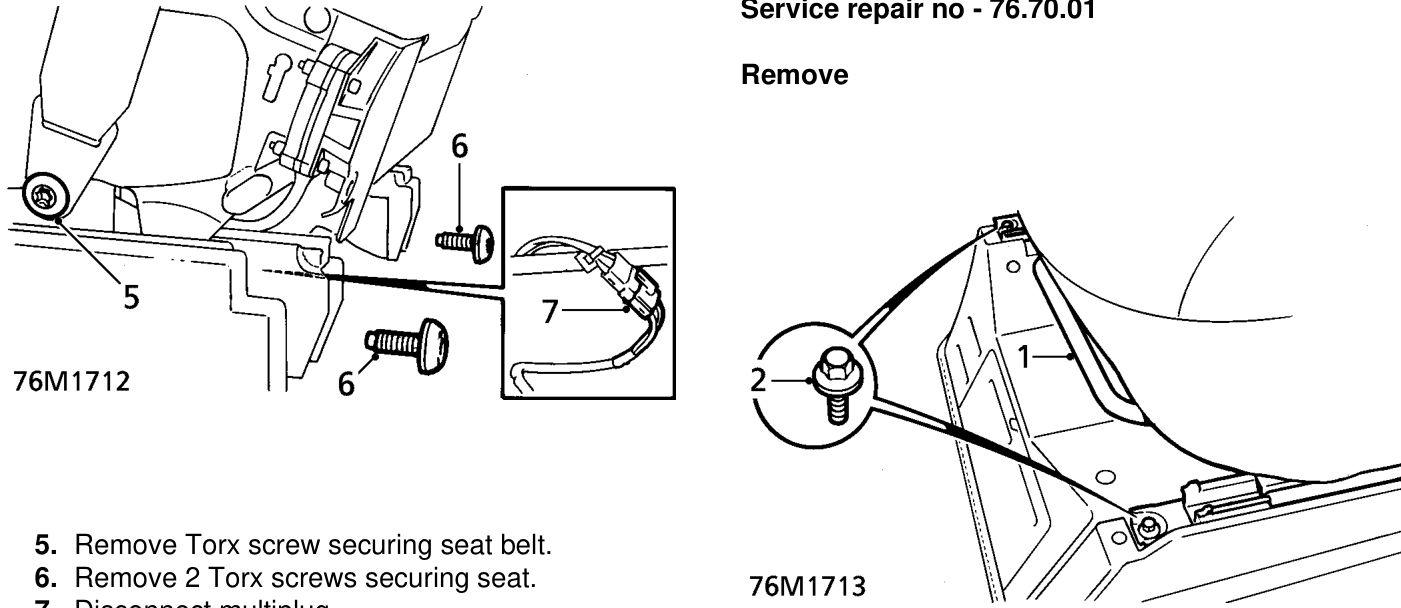

Front seat - manual - 5 door (96 models) – Service repair no - 76.70.01

Remove

  1. Remove Torx screw securing seat belt.
  2. Remove 2 Torx screws securing seat.
  3. Disconnect multiplug.
  4. Remove seat.

Refit

  1. Reverse removal procedure.
  2. Tighten Torx screws securing seat to 29 Nm (21 .

lbf ft)

  1. Tighten bolts securing seat slides to 22 Nm (16 .

lbf ft)

  1. Tighten Torx screw securing seat belt to 32 Nm .

(24 lbf ft)

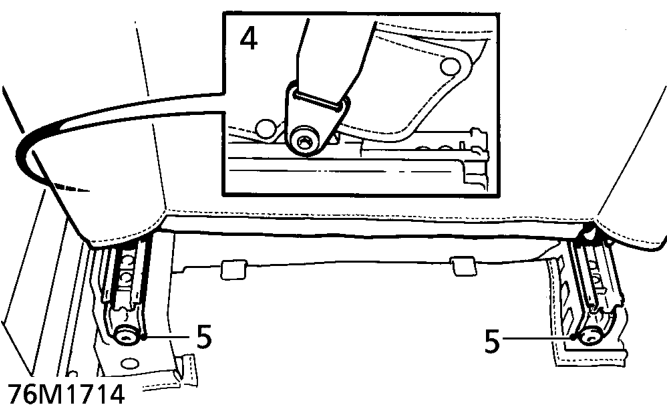

  1. Raise adjusting bar and slide seat fully backwards.
  2. Remove 2 bolts securing seat slides.
  3. Raise adjusting bar and slide seat fully forwards.
(24 lbf ft) – Raise adjusting bar and slide seat fully forwards.
  1. Remove Torx screw securing seat belt.
  2. Remove 2 Torx screws securing seat.
  3. Remove seat.
