ELECTRICAL, Repair.

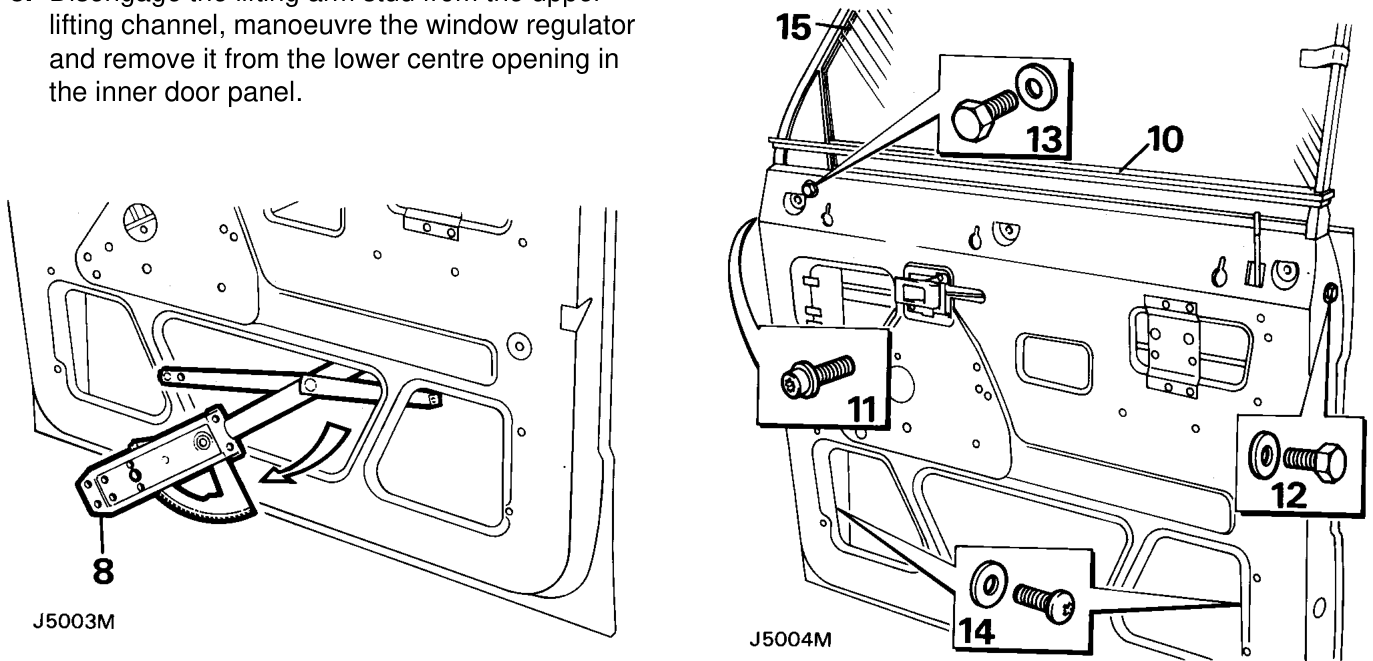

8. Disengage the lifting arm stud from the upper lifting channel, manoeuvre the window regulator

and remove it from the lower centre opening in the inner door panel.

9. Remove the exterior driving mirror. See
14. Remove the screws and plain washers, from

ELECTRICAL, Repair.

10. Remove the waist rail seal from the top of the door panel.
15. Lift the door glass frame complete with glass out
11. Remove the ’Torx’ bolt from the hinge face of the door which secures the front of the door frame.
12. Remove the bolt and plain washer from the
16. Remove the adhesive tape securing the glass to

opening edge of the door which secures the rear of the door frame.

17. Slide the glass out of the door frame channel.
13. Remove the bolt and plain washer from the recessed hole in the front of the inner door panel

Refit

under the exterior driving mirror mounting plate.

door frame securing bolts.

18. Reverse removal procedure.

inside the door, securing the bottom of the front and rear glass channels.

of the door panel and remove to a suitable bench.

the door frame.

• NOTE: When refitting the door glass
• frame, ensure it is repositioned to suit the
• door opening before fully tightening the
