ALPINE LIGHT TRIM CASING

Service repair no - 76.13.20

Remove

  1. Remove RH ’E’ post trim casing. See this section.

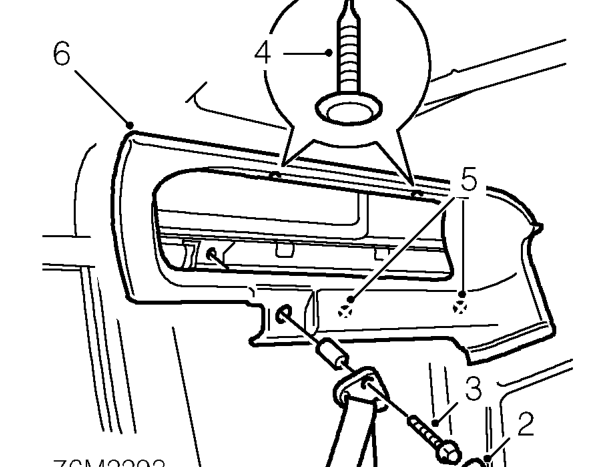

Alpine light trim casing – Remove RH ’E’ post trim casing. See this section.
  1. Remove rear seat belt anchorage retaining bolt cover.
  2. Remove bolt securing rear seat belt anchorage.
  3. Remove 2 trim studs securing trim casing.
  4. Release trim casing from 2 retaining studs.
  5. Remove trim casing.

Refit

  1. Fit and align trim casing and secure with studs.
  2. Fit 2 trim studs securing trim casing.
  3. Position seat belt anchorage, fit bolt and tighten to 32 Nm (24 lbf ft)

.

  1. Fit cover to seat belt anchorage bolt.
  2. Fit ’E’ post trim casing. See this section.
