Sunroof electric/manual

SUNROOF ELECTRIC/MANUAL

Introduction

Twin sunroofs are fitted to the vehicle, the open/close sequence for both electric and manual versions sharing the same operation:-

A Closed position, B Tilt position, C Fully open position. When fully open the sunroof slides back in a tilt position over the vehicle roof.

The electric front and rear sunroofs, operated by roof mounted switches are controlled by an electronic control unit. A roof mounted isolation switch is also fitted to cut off power to the rear sunroof.

On manual sunroofs a pull down handle is used, incorporating a depress button that locks the handle after each sequence.

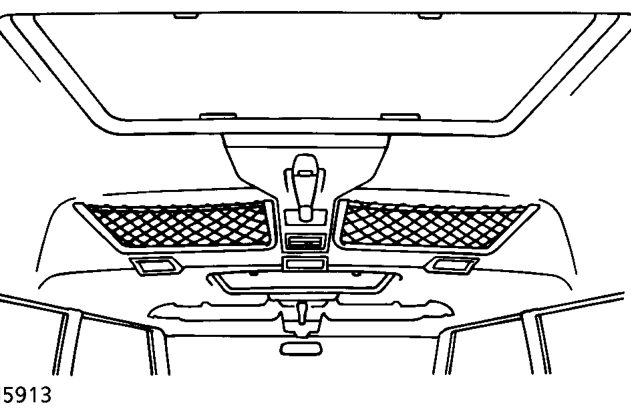

Twin sun blinds are installed in the clamping frame of the sunroof and can be drawn forwards independently.
