Rear outer seats belt

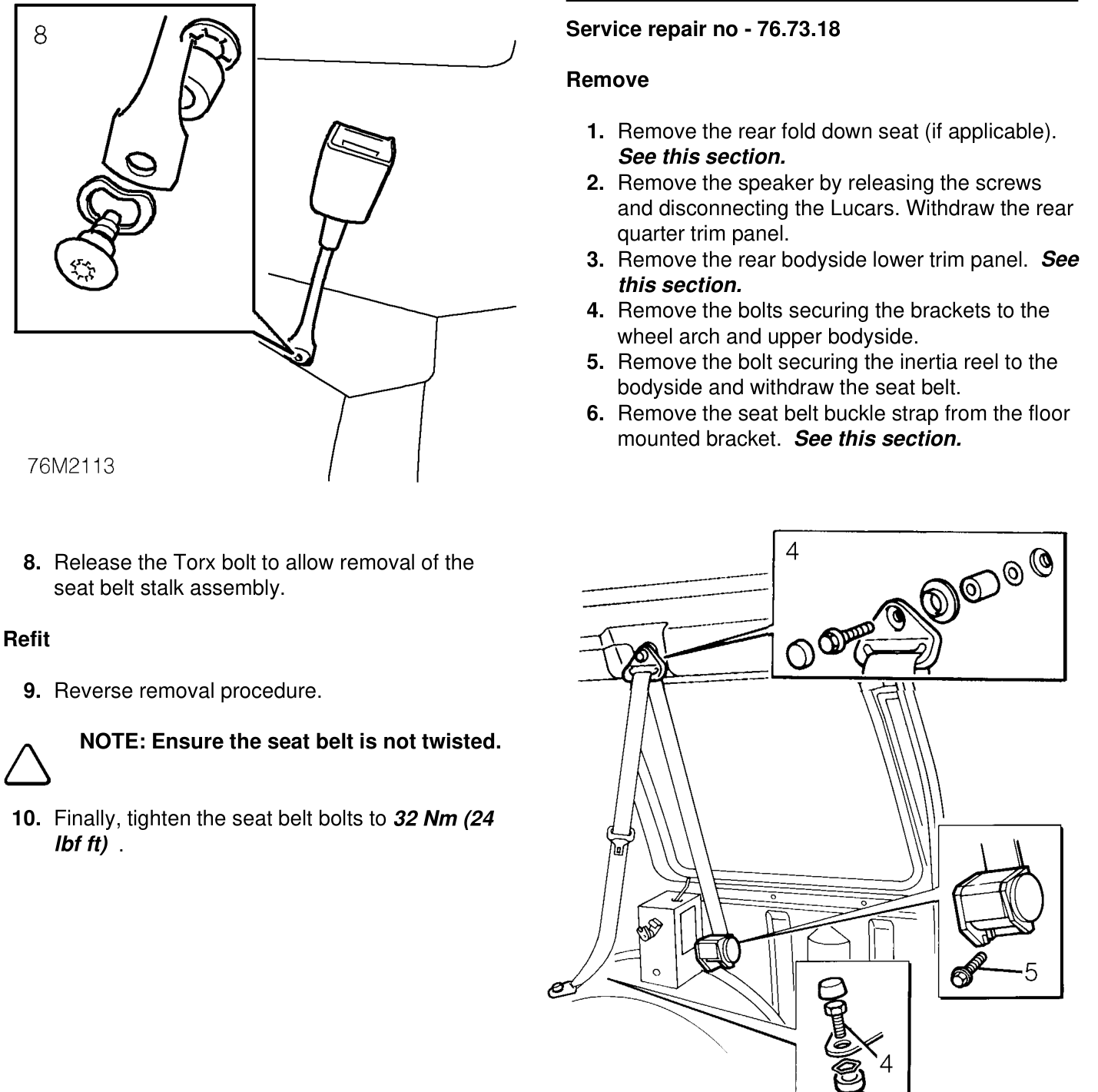

REAR OUTER SEATS BELT

Service repair no - 76.73.18

Remove

1. Remove the rear fold down seat (if applicable). See this section.
2. Remove the speaker by releasing the screws and disconnecting the Lucars. Withdraw the rear quarter trim panel.
3. Remove the rear bodyside lower trim panel. See this section.
4. Remove the bolts securing the brackets to the wheel arch and upper bodyside.
5. Remove the bolt securing the inertia reel to the bodyside and withdraw the seat belt.
6. Remove the seat belt buckle strap from the floor mounted bracket. See this section.
8. Release the Torx bolt to allow removal of the seat belt stalk assembly.

Refit

9. Reverse removal procedure.

NOTE: Ensure the seat belt is not twisted.

10. Finally, tighten the seat belt bolts to 32 Nm (24 lbf ft) .

Refit

7. Reverse removal procedure.
8. Finally, tighten the seat belt bolts to 32 Nm (24 lbf ft) .
