Sill finisher bonnet [hood]

SILL FINISHER BONNET [HOOD]

Service repair no - 76.76.05 Service repair no - 76.16.01

Remove Remove

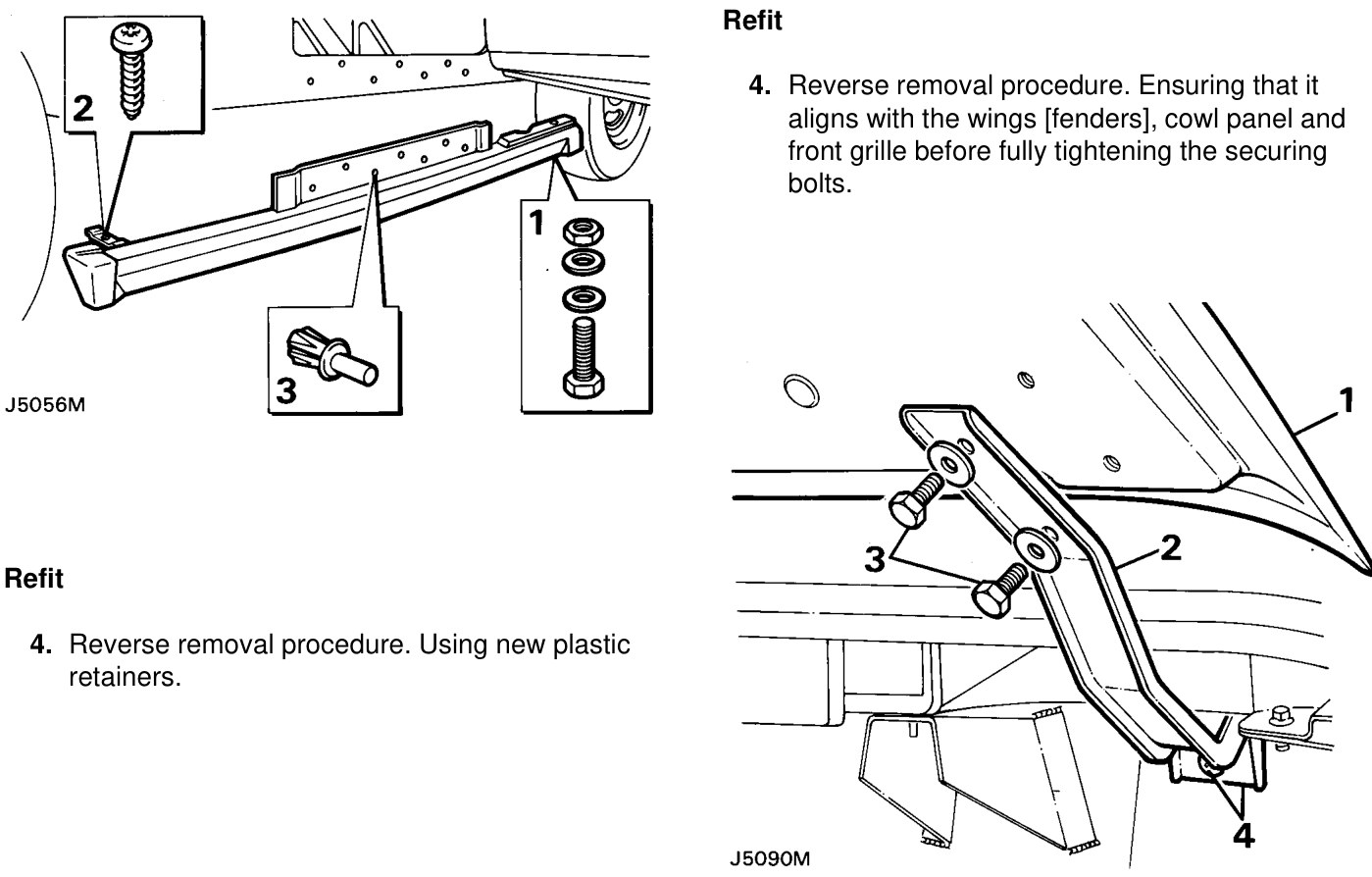

1. Remove the nut, bolt and washer securing the front of the sill finisher to the wing [fender] support bracket.
2. Remove the screw securing the bracket at the rear end of the finisher to the sill.
3. Using a suitable punch, remove the inserts from the seven plastic retainers and withdraw the finisher from the sill.
1. Open the bonnet [hood] and support with the stay.
2. Mark the position of the hinges to the bonnet [hood].
3. With the assistance of a second operator, remove the hinge to bonnet [hood] securing screws, remove the support stay and lift bonnet [hood] from the vehicle. Note the quantity of shims fitted between the hinge and bonnet [hood].

Refit

4. Reverse removal procedure. Ensuring that it aligns with the wings [fenders], cowl panel and front grille before fully tightening the securing bolts.

Refit

4. Reverse removal procedure. Using new plastic retainers.
